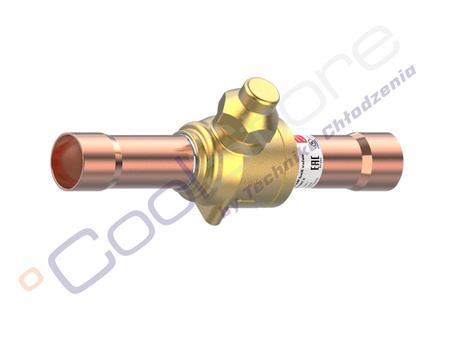

DANFOSS 28s - 1 1/8" Soldered Shut-off Valve 009G7026

  • DANFOSS 28s - 1 1/8" Soldered Shut-off Valve 009G7026
  • DANFOSS 28s - 1 1/8" Soldered Shut-off Valve 009G7026
Producer: DANFOSS
Product code: AUDA_7724
Series:Danfoss_38_40
73,42 €
/ pc.
59,69 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

DANFOSS 28S - 1 1/8" SOLDERED SHUT-OFF VALVE 009G7026

DANFOSS 28S 009G7026 is a high-quality soldered shut-off valve designed for refrigeration and air conditioning systems. Equipped with 1 1/8" ODF solder connections, it ensures a durable and leak-tight connection in demanding HVAC/R applications.

The GBC 28S model is compatible with popular refrigerants such as R134a, R404A, R407C, R410A, and R507. Its robust design allows installation on liquid, suction, and hot gas lines.

The valve features full-flow capacity and a convenient quarter-turn operation for quick shut-off control. High internal and external tightness, along with resistance to high pressure and temperature, ensures reliable long-term performance.

Danfoss 009G7026 operates within a temperature range of -40°C to +150°C and a maximum working pressure of 45 bar. It is a proven solution for professional refrigeration and air conditioning installations.

Tech specs:
Connectors:
1 1/8"
Kv value [m³/h]:
62,0 m3/h
Operating temperature range:
od -40°C do +150°C
Maximum operating pressure:
45 bar
Connection material :
miedź
Body material:
Mosiądz
Pictures:
illustrative
