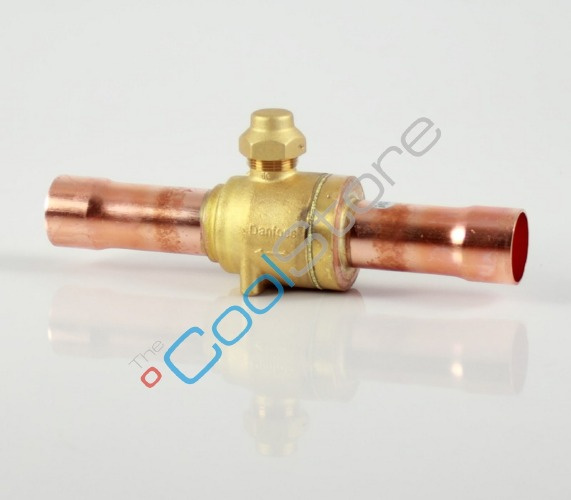

Danfoss GBC ball valve 35s solder 35mm 009G7027

GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.

Producer: DANFOSS

Product code: AUDA_7730

Series:Danfoss_38_40

Size:

Our price:

162,36 €

/ pc.

132,00 €

net / pc.

Quantity:

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

Danfoss GBC ball valve 35s solder 35mm 009G7027

TECHNICAL DATA

Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature

Characteriatic	Value
Type	GBC 28s
Cv-value [USgal/min]	356,15
Direction	Straightway
Inlet connection type	Solder, ODF
Inlet size	1 3/8", 35 mm
Kv-value [m³/h]	80,89
Max. test pressure [bar]	65,0 bar
Max. Working Pressure [bar]	45,0 bar
Outlet connection type	Solder, ODF
Outlet size	1 3/8", 35 mm
Refrigerant(s)	CFC, HCFC, HFC
Temperature range [°C]	-40 ~150°C

Tech specs:

Pictures:	illustrative
Manufacturer/responsible entity in the EU :	Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222 , EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 \| fax +39 0437 83648 email info@evco.it \| web www.evco.it , "Termo Plus sp. z o.o. Wilanowska 2, 05-509 Józefosław, Polska +48 15 687 49 91 biuro@esco.eu.com"
