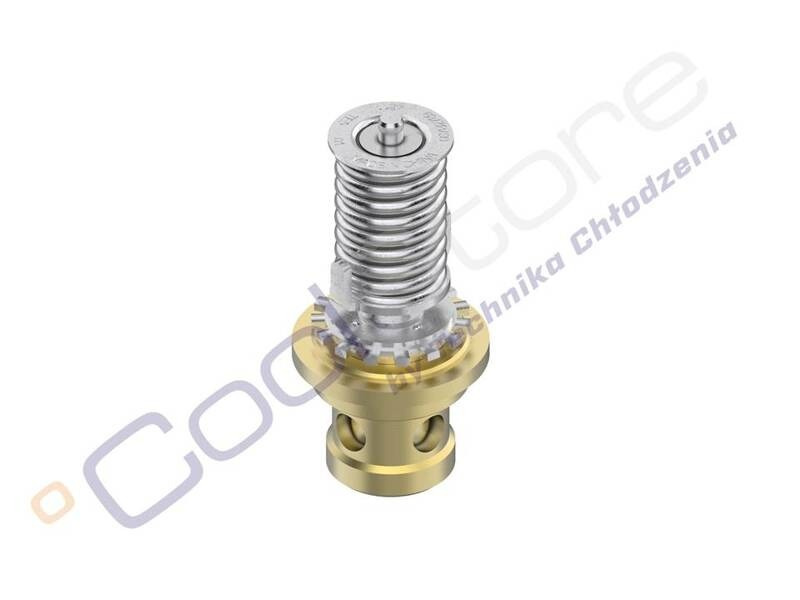

Orifice Danfoss nr 9 to TE20 067B2773

  • Orifice for Thermostatic Valves
  • Orifice Danfoss nr 9 to TE20 067B2773
Producer: DANFOSS
Product code: 067B2773
166,05 €
/ pc.
135,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Orifice Danfoss nr 9 to TE20 067B2773



Orifice assemblies with filters, designed for use with either solder adapter product configurations or standard product configurations.
The rated capacity is based on:
Evaporating temperature te = +5°C for range N (–40 - 10°C) and te = –30°C for range B (–60 - –20°C)
Condensing temperature tc = +32°C
Refrigerant temperature ahead of valve tl = +28°C



Tech specs:
Rozmiar dyszy:
09
Typ:
Orifice
Wydajność znamionowa R134a, Zakres N [kW]:
92,30 kW
Wydajność znamionowa R22, Zakres B [kW]:
73,20 kW
Wydajność znamionowa R22, Zakres N [kW]:
150,00 kW
Wydajność znamionowa R404A, Zakres B [kW]:
43,50 KW
Wydajność znamionowa R404A, Zakres N [kW]:
102,00 KW
Wydajność znamionowa R407C, Zakres N [kW]:
136,00 kW
Wydajność znamionowa R507, Zakres B [kW]:
43,50 KW
Wydajność znamionowa R507, Zakres N [kW]:
102,00 KW
Application:
TE 20
Pictures:
illustrative
