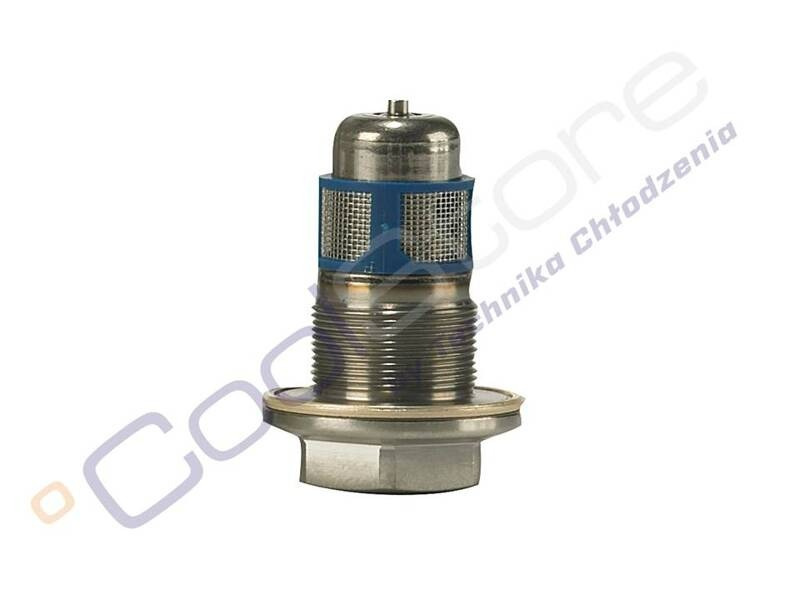

Orifice Danfoss nr 7 for TUA 068U1037

  • Orifice for Thermostatic Valves
  • Orifice Danfoss nr 7 for TUA 068U1037
Producer: DANFOSS
Product code: AUDA_2616
Series:Danfoss_38_40
37,93 €
/ pc.
30,84 €
net / pc.
Add to wish list

Orifice Danfoss nr 7 for  TUA 068U1037



Orifice assemblies with filters, designed for use with either solder adapter product configurations or standard product configurations.
The rated capacity is based on:
Evaporating temperature te = +5°C for range N (–40 - 10°C) and te = –30°C for range B (–60 - –20°C)
Condensing temperature tc = +32°C
Refrigerant temperature ahead of valve tl = +28°C



Tech specs:
Rozmiar dyszy:
07
Type:
Orifice
Wydajność znamionowa R134a, Zakres N [kW]:
5,50 kW
Wydajność znamionowa R22, Zakres B [kW]:
4,70 kW
Wydajność znamionowa R22, Zakres N [kW]:
7,00 kW
Wydajność znamionowa R404A, Zakres B [kW]:
3,50 KW
Wydajność znamionowa R404A, Zakres N [kW]:
5,60 KW
Wydajność znamionowa R407C, Zakres N [kW]:
7,50 kW
Wydajność znamionowa R507, Zakres B [kW]:
3,90 KW
Wydajność znamionowa R507, Zakres N [kW]:
5,30 KW
Application:
TUA/TUAE
Pictures:
illustrative
