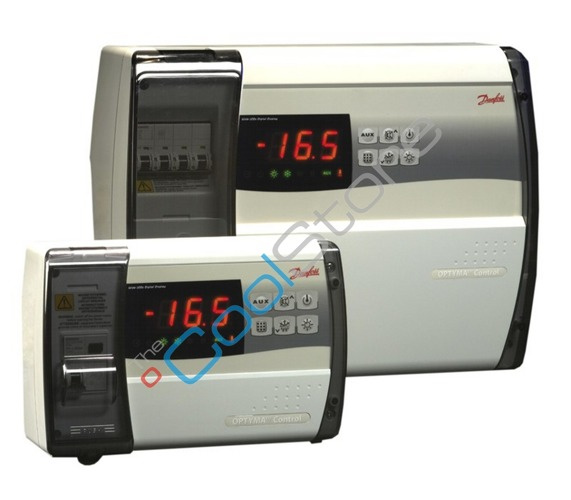

Danfoss OPTYMA Control AK-RC 111

The control single-phase is a new control panel for cold rooms with a single-phase compressor up to 2 HP.

Producer: DANFOSS

Product code: STDA_005

Series:Danfoss_38

Size:

Our price:

419,58 €

/ pc.

341,12 €

net / pc.

Quantity:

Tech specs:

Power supply:	230 V, 50 Hz
Operating temperature..:	-5 to 50°C
Number of sensors:	2
Sensor type:	EKS 221, code no.: 084N3210
Measuring range (0564 1560):	-45…+45 °C
Digital outputs:	5
Relay:	Compressor , Defrost , Fan , Lighting , Termostat
IP Protection:	IP65
Pictures:	illustrative
Manufacturer/responsible entity in the EU :	Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222 , EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 \| fax +39 0437 83648 email info@evco.it \| web www.evco.it

MANUAL Download
