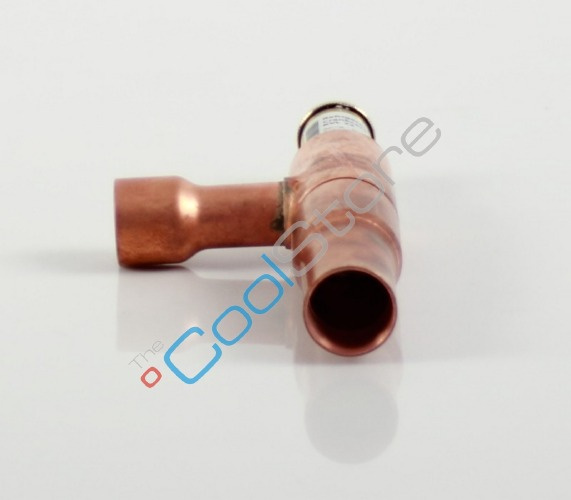

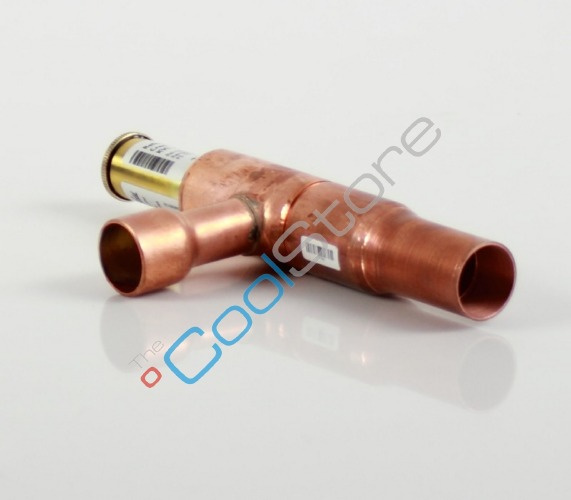

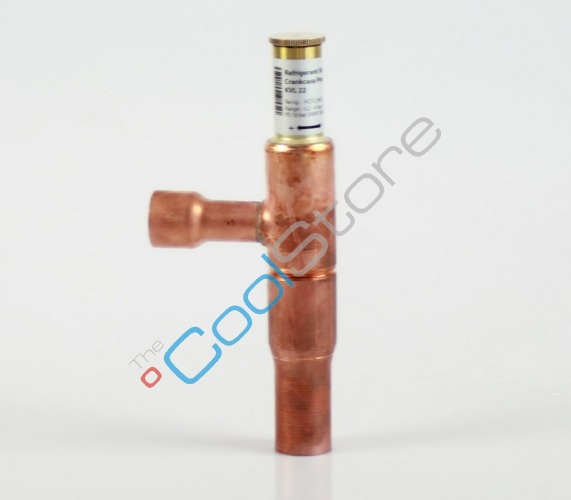

Suction pressure regulator Danfoss KVL 12 034L0048

  • Regulating range 0.2 - 6.0 bar, factory setting 2 bar, max. working pressure 18 bar.
  • Schraeder valve for pressure testing.
  • Suction pressure regulator Danfoss KVL 12 034L0048
  • Suction pressure regulator Danfoss KVL 12 034L0048
  • Suction pressure regulator Danfoss KVL 12 034L0048
Producer: DANFOSS
Product code: AUDA_3304
Series:Danfoss_38_40
218,13 €
/ pc.
177,34 €
net / pc.
Add to wish list

Suction pressure regulator  Danfoss KVL 12 034L0048



Regulating range 0.2 - 6.0 bar, factory setting 2 bar,  max. working pressure 18 bar. Schraeder valve for pressure testing.






Tech specs:
Maksymalne ciśnienie próbne:
19,8 bar
Maximum operating pressure:
18,0 bar
Inlet size:
12 mm
Type of inlet connection:
Do lutowania, ODF
Outlet connection type:
Do lutowania, ODF
Ustawienia fabryczne:
2,00 bar
Wartość Kv[m/h]:
3,20
Wydajność znamionowa R134a:
5,30 kW
Wydajność znamionowa R404A/R507:
6,30 kW
Wydajność znamionowa R407C:
6,40 kW
Regulation range:
0,2 - 6,0 bar
Zakres temp. medium:
-60 - 130 °C
Pictures:
illustrative
Type:
KVL 12
Manufacturer/responsible entity in the EU :
Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222
,
EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 | fax +39 0437 83648 email info@evco.it | web www.evco.it
