Control IGLOO MRT-6

  • Temperature controller for refrigeration units.
  • Control IGLOO MRT-6
  • Control IGLOO MRT-6
  • Control IGLOO MRT-6
  • Control IGLOO MRT-6
  • Control IGLOO MRT-6
Producer: IGLOO
Product code: STIG_060
Series:Sterowniki - IGLOO
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

Control IGLOO MRT-6

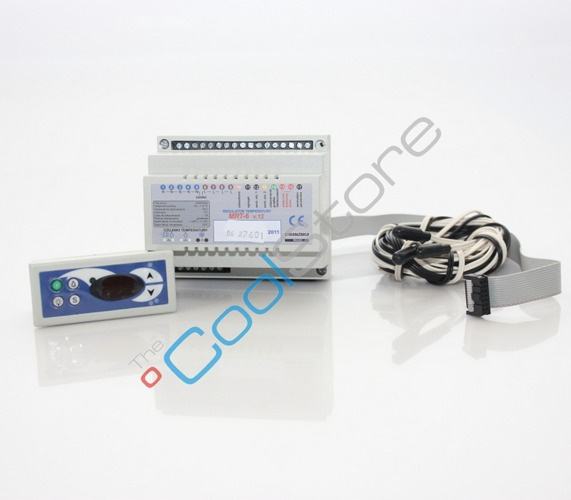

Electronic temperature controller for refrigeration units. Device allowes to control work of generator, lighting, evaporator fan, condenser fan, solenoid valve or heaters and three other outputs. Instrument consists of two elements connected by separable conductor:

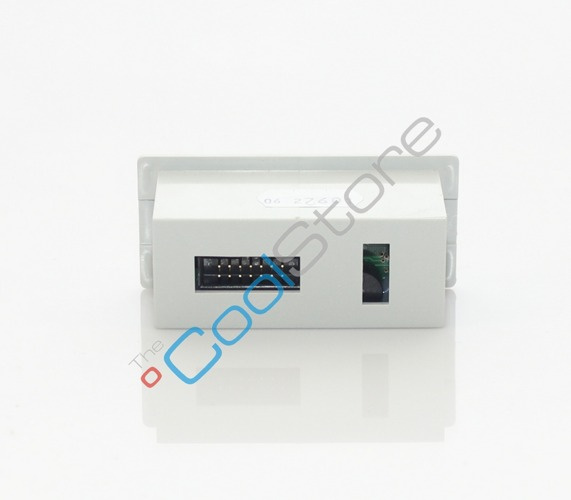

1. Reading-setting panel designed for panel mounting

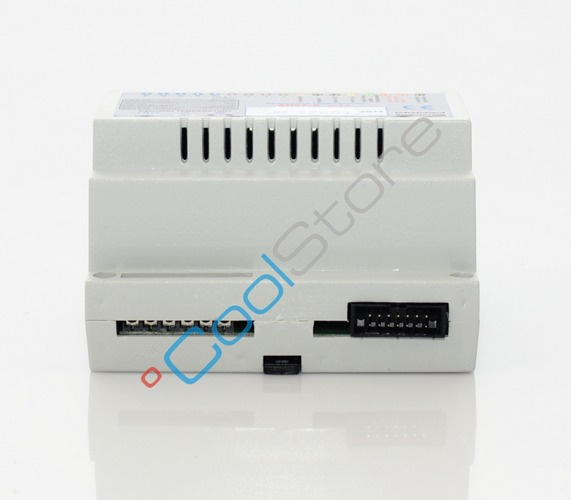

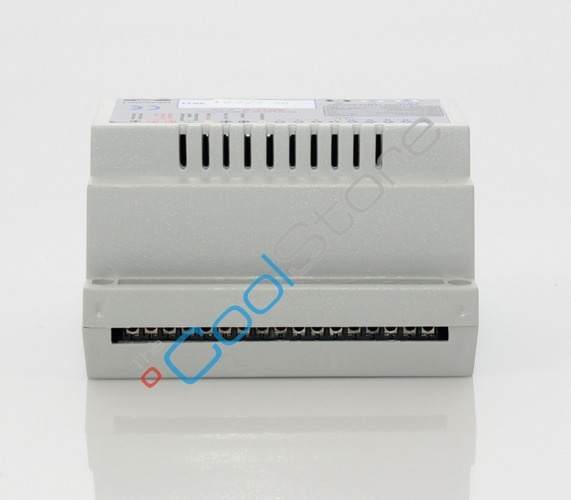

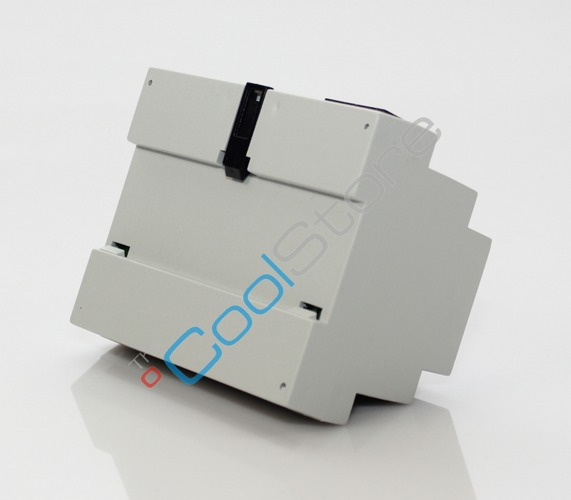

2. Controlling panel designed for rail mounting.

Controller is equipped with:

- the switch for the generator,

- the light switch,

- the button for manual release of defrost cycle,

- temperature gauge,

- adjusting keyboard.

Size: panel NST 47x29mm

Inputs: two inputs PTC

Range: -40 ~ 99°C

Zasilanie: 230V







Tech specs:
Length of measuring sensors:
0,9m, 1,5m, 3,2m, 5m
Number of sensors:
2
Sensor/s in the set:
Yes
The load capacity of the lighting relay contacts:
10A 250V AC
Contact rating of the relay controlling circuit no. 1:
30A 250V AC
Load rating of the relay control circuit 2:
10A 250V AC
IP Protection:
IP30
Operating temperature :
+5....+40°C
Operating humidity:
20....80%RH
Control hysteresis range - heating circuit No. 1:
1....20°C
Control hysteresis range - heating circuit No. 2:
1....10°C
Control temperature range - heating circuit No. 1:
-40...+99°C
Control temperature range - heating circuit No. 2:
0...99°C
Temperature range of alarm signaling - heating circuit no. 1:
-40...99°C
Temperature range of alarm signaling - heating circuit No. 2:
30...99°C
Power supply:
230V AC +10%-15%
Pictures:
illustrative
