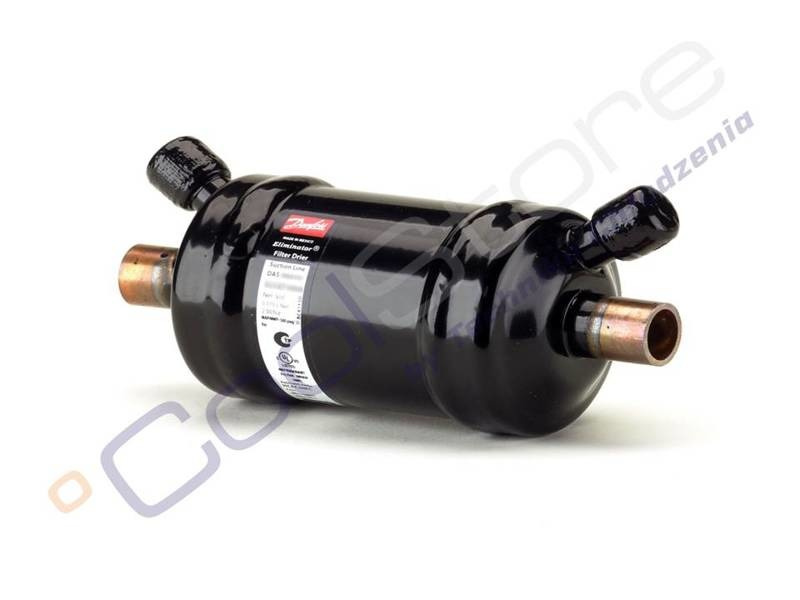

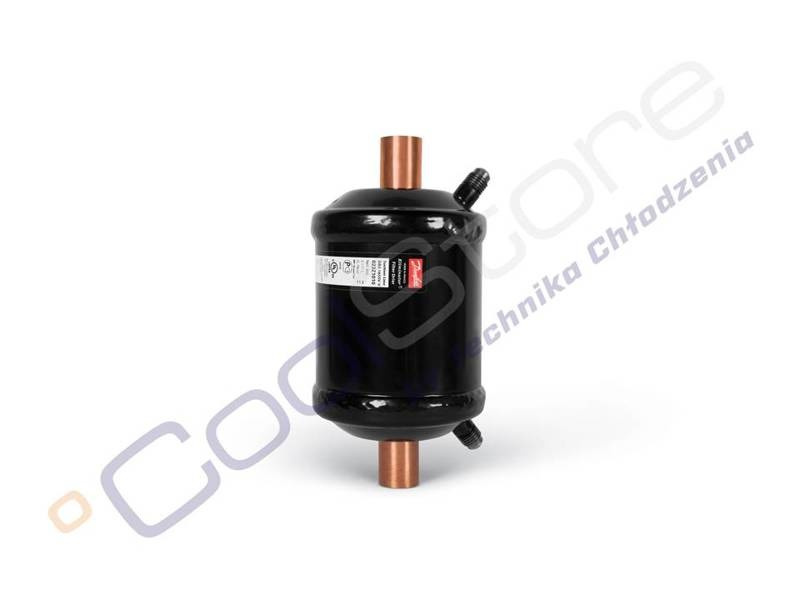

Burn-out filter drier Danfoss DAS 083sW Solder 023Z1003

  • Burn-out filter drier for fluorinated refrigerants.
  • Burn-out filter drier Danfoss DAS 083sW Solder 023Z1003
  • Burn-out filter drier Danfoss DAS 083sW Solder 023Z1003
Producer: DANFOSS
Product code: AUDA_6892
Series:Filtry - Danfoss
92,50 €
/ pc.
75,20 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Burn-out filter drier Danfoss DAS 083sW Solder 023Z1003

Burn-out filter drier for fluorinated refrigerants.

70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.


2 Schraeder access valves to measure pressure drop across the drier.


Max. working pressure: 35 bar.

 120 mesh wire mesh for solid particle retention.

Characteristic

Value

Catalogue number

023Z1003

Solid core surface

131 cm2

Nominal capacity

170 cm3

Inlet connection size ODS

3/8"

TS  (min ~ max)

-40 ~ 70°C

PS

35 bar



Tech specs:
Pictures:
illustrative
Możłiwość zwrotu:
brak
Manufacturer/responsible entity in the EU :
Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222
,
EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 | fax +39 0437 83648 email info@evco.it | web www.evco.it
