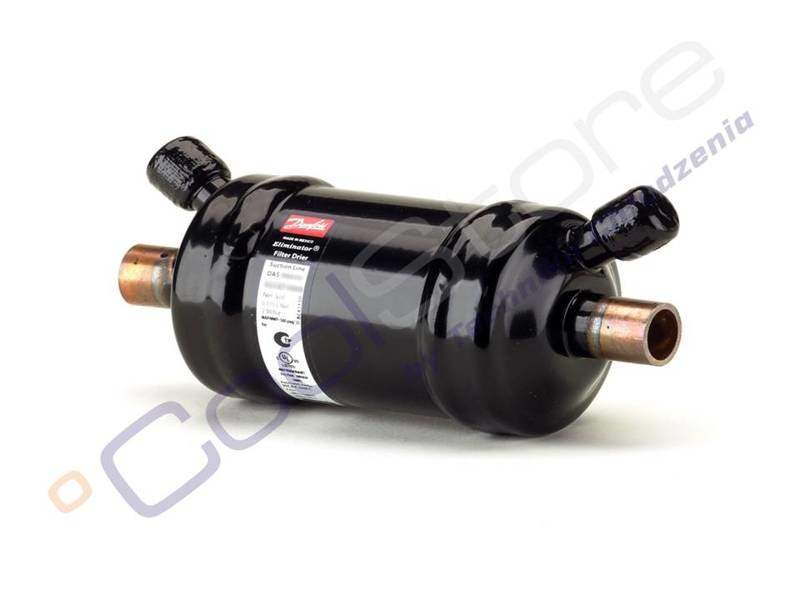

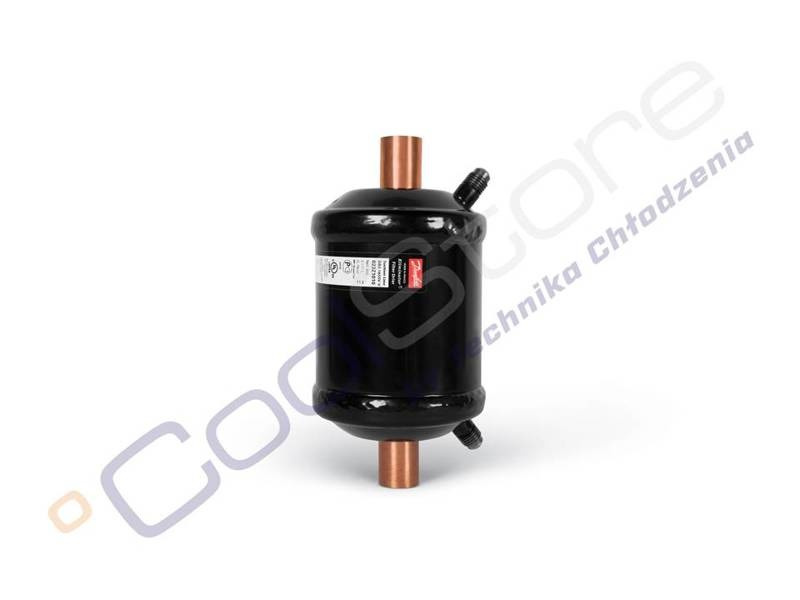

Burn-out filter drier Danfoss DAS 086sW Solder 023Z1006

Burn-out filter drier for fluorinated refrigerants.

Producer: DANFOSS

Product code: AUDA_6900

Series:Filtry - Danfoss

Size:

Our price:

86,79 €

/ pc.

70,56 €

net / pc.

Quantity:

Burn-out filter drier Danfoss DAS 086sW Solder 023Z1006

Burn-out filter drier for fluorinated refrigerants.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schraeder access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.

Characteristic	Value
Catalogue number	023Z1006
Solid core surface	131 cm²
Nominal capacity	170 cm³
Inlet connection size ODS	3/4"
TS (min ~ max)	-40 ~ 70°C
PS	35 bar

Tech specs:

Pictures:	illustrative
Możłiwość zwrotu:	brak
Manufacturer/responsible entity in the EU :	Danfoss Headquarters, Nordborgvej 81, 6430 Nordborg, Dania, danfoss@danfoss.com +45 7488 2222 , EVCO S.p.A. Via Feltre 81, 32036 Sedico (BL) ITALY phone +39 0437 8422 \| fax +39 0437 83648 email info@evco.it \| web www.evco.it
