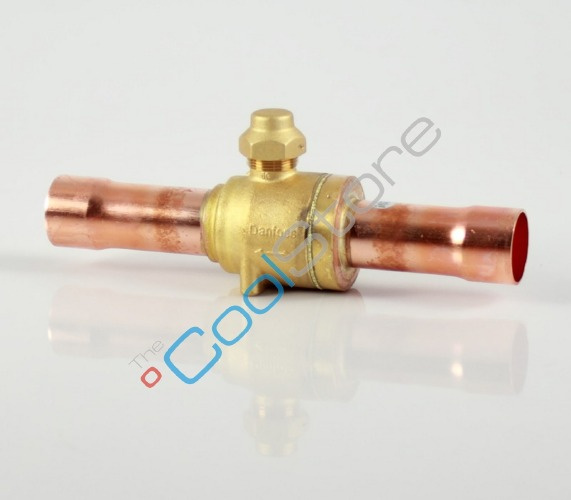

Danfoss GBC ball valve 28s solder 28 mm 009G7033

  • GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
  • Danfoss GBC ball valve 28s solder 28 mm 009G7033
Producer: DANFOSS
Product code: AUDA_7726
Series:Danfoss_38_40
73,42 €
/ pc.
59,69 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Danfoss GBC ball valve 28s solder 28 mm 009G7033



Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature




Tech specs:
Czynnik:
CFC, HCFC, HFC
Kierunek:
Prosty
Maksymalne ciśnienie próbne:
65,0 bar
Maximum operating pressure:
45,0 bar
Inlet size:
28 mm
Rozmiar wylotowy:
28 mm
Type:
GBC 28s
Type of inlet connection:
Do lutowania, ODF
Outlet connection type:
Do lutowania, ODF
Wartość Cv [gal/min]:
228,73
Wartość Kv [m/h]:
51,95
Temperature range:
40 ~150°C
Pictures:
illustrative
