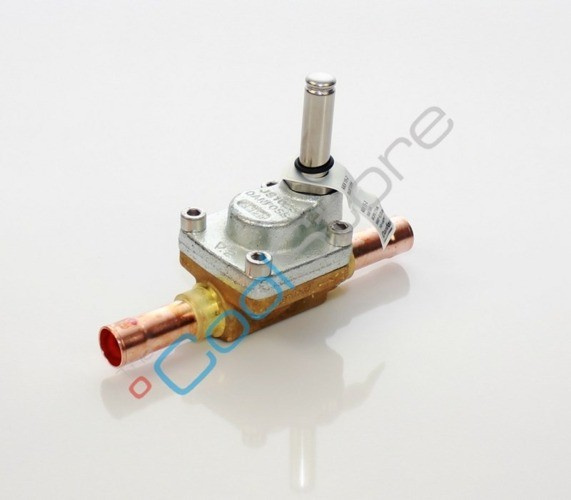

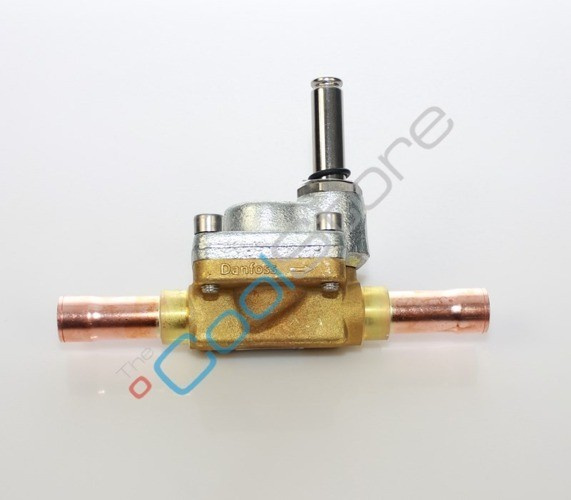

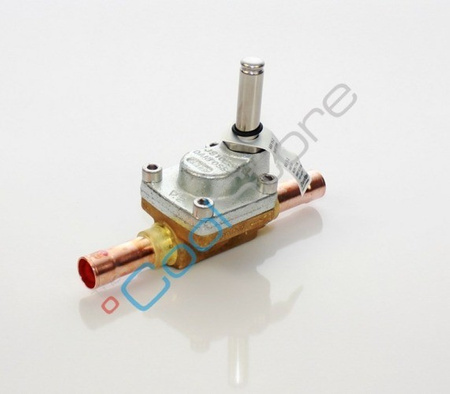

Valve body Danfoss NC EVR6 10mm solder

  • Refrigerants: CFC, HCFC, HFC.
  • Temperature of medium: –40 - +105°C (10 W / 12 W coil).
  • Max. 130°C during defrosting.
  • Min. opening differential pressure, EVR 2-3: 0.0 bar, EVR 6-22: 0.05 bar, EVR 25-32: 0.20 bar.
  • Valve body Danfoss NC EVR6 10mm solder
  • Valve body Danfoss NC EVR6 10mm solder
  • Valve body Danfoss NC EVR6 10mm solder
Producer: DANFOSS
Product code: AUDA_2486
Series:Danfoss_38_40
195,13 €
/ pc.
158,64 €
net / pc.
Add to wish list
Valve body Danfoss NC EVR6 10mm solder
TECHNICAL DATA



Characterictic



Value

Type

EVR6

Inlet size [mm]

10 mm

Cv-value [gal/min]

0,92

Kv [m³ / h]

0,80
Max. Working Pressure [bar]
                                     45,2 bar





Tech specs:
Pictures:
illustrative
