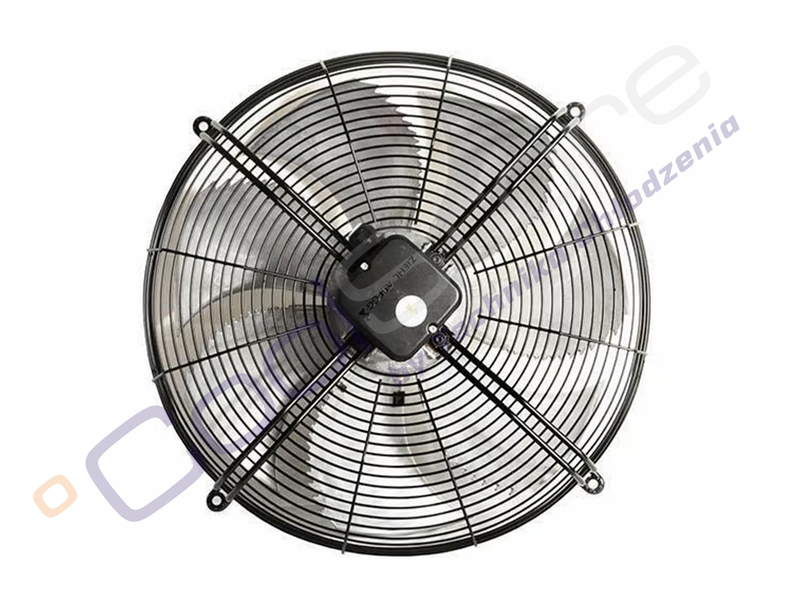

ZIEHL-ABEGG FN063-VDK.6N.V7P6 – SUCTION FAN 165587
The ZIEHL-ABEGG FN063-VDK.6N.V7P6 fan is a high-performance axial fan in a suction version, used in ventilation and cooling installations as well as in industrial equipment. The 630 mm impeller diameter allows for efficient movement of large volumes of air while maintaining stable operating parameters.
This model features a performance of up to approximately 17,000 m³/h and a rotational speed of around 1,400 rpm. Thanks to these specifications, the fan is ideal for applications requiring intensive cooling or effective air extraction from devices and technological spaces.
The fan is powered by a three-phase 400 V (50/60 Hz) supply, with a motor power of approximately 1.75 kW. Its IP54 protection rating and wide operating temperature range from -40°C to +70°C enable operation under demanding environmental conditions, including outdoor installations.
A robust construction, based on aluminum blades and durable ball bearings, ensures long service life and reliable operation. The fan complies with the ErP directive, can be installed in various positions, and weighs approximately 28 kg, reflecting its industrial-grade design.
| Diameter: | 630 mm |
| Power supply: | 380 V / 50 Hz |
| Flow: | Suction |
| Rated speed: | 1300 r/min |
| Air volume: | 16000 m3/h |
| Input: | 1550 W |
Weight: net | 15,4 kg |
| Directive ErP 2015: | ✓ |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Niemcy tel. +49 7940 16 0 info@ziehl-abegg.de |
