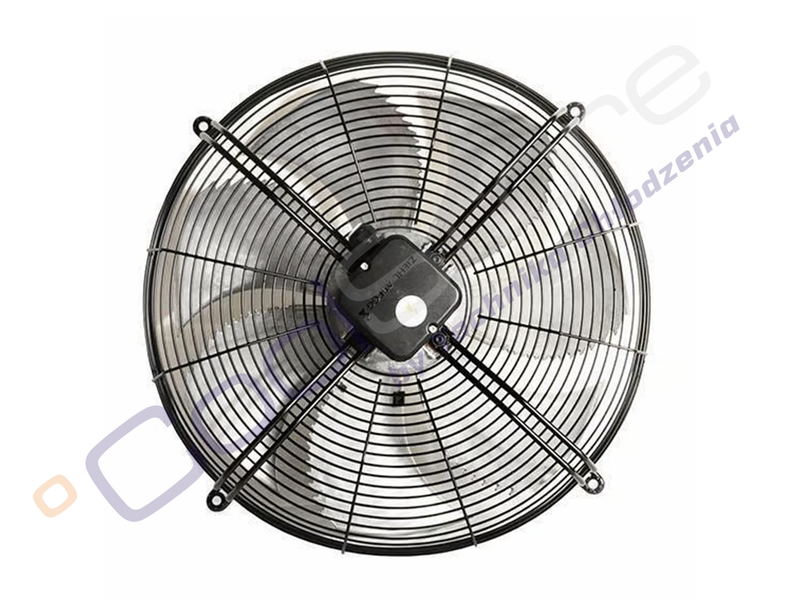

ZIEHL-ABEGG FN050-VDK.4I.V7P1 - EXHAUST FAN 176542
The FN050-VDK.4I.V7P1 fan is an axial suction device used in ventilation, air-conditioning, and refrigeration systems. Its primary function is to efficiently force the flow of large volumes of air, which is why it is commonly used in condensers, air coolers, and industrial air exchange systems.
The unit is equipped with an impeller with a diameter of approximately 500 mm and a three-phase motor powered by 400 V / 50 Hz. Thanks to the ability to operate in two connection configurations, the fan can achieve different rotational speeds, providing an airflow capacity of up to approximately 9,500 m³/h. This allows flexible adjustment of operating parameters to suit a specific installation.
The fan’s robust design ensures a long service life even under demanding operating conditions. The IP54 protection rating safeguards the motor against dust and moisture, while the ball bearings used are designed for continuous operation without the need for additional maintenance. A wide operating temperature range allows the device to be used both indoors and outdoors.
The FN050-VDK.4I.V7P1 model is valued for its reliability, stable operation, and ease of installation. It performs well wherever high airflow is required while maintaining high manufacturing quality. It is a professional solution dedicated to industrial and commercial installations.
| Diameter: | 500 mm |
| Power supply: | 380 V / 50 Hz |
| Flow: | Suction |
| Rated speed: | 1340 min-1 |
| Air volume: | 9450 m3/h |
| Current.: | 1,45 A |
| Input: | 840 W |
| Directive ErP 2015: | - |
Weight: net | 13,0 kg |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Niemcy tel. +49 7940 16 0 info@ziehl-abegg.de |
