CONEX BANNINGER - CU reduction nipple 42 x 22 [mm]

CONEX BANNINGER -  NYPEL  REDUKCYJNY CU 42 x 22 MM

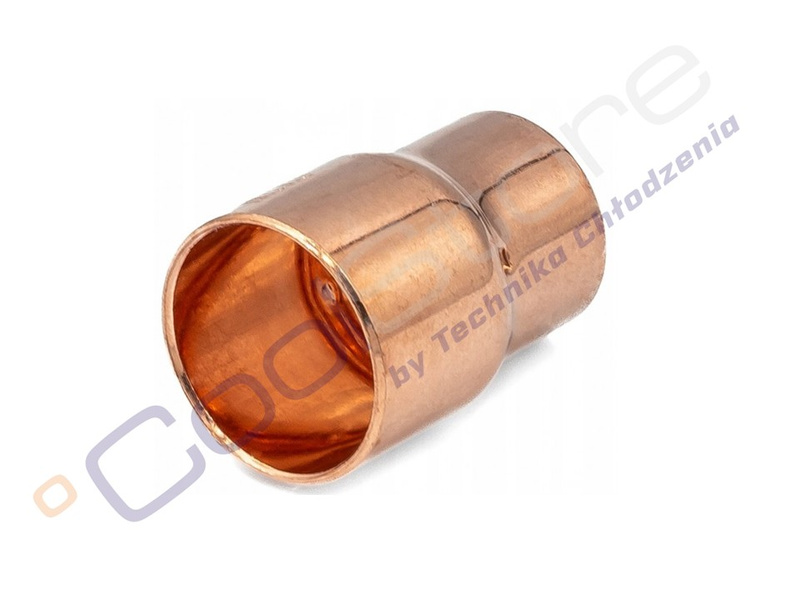

The 42 x 22 mm copper reduction nipple from the 5000 series is designed for connecting copper pipes of different diameters, i.e., 42 and 22 mm. The connector is made of phosphorus-deoxidized copper with the symbol Cu-DHP (CW024A). The 5000 series fittings are characterized by their thin walls, which means a smaller outer diameter, especially in comparison to other materials used to manufacture other fittings. This makes them easy to hide in the device's structure. The 42x22 mm copper reduction nipple is connected by soldering with a hard solder containing at least 2% silver. The operating temperature is 120ºC and the pressure is 40 bar. It is suitable for use with R-134a, R-404a, R407c, and R410a refrigerants. The 42x22 mm copper reduction nipple is designed for connection to pipes compliant with PN-EN 12735-1 and PN-EN 1057. The 5000 series is PZH certified.
