CONEX BANNNGER – 15 mm CU Tee

CONEX BANNINGER – CU TEE 15 MM

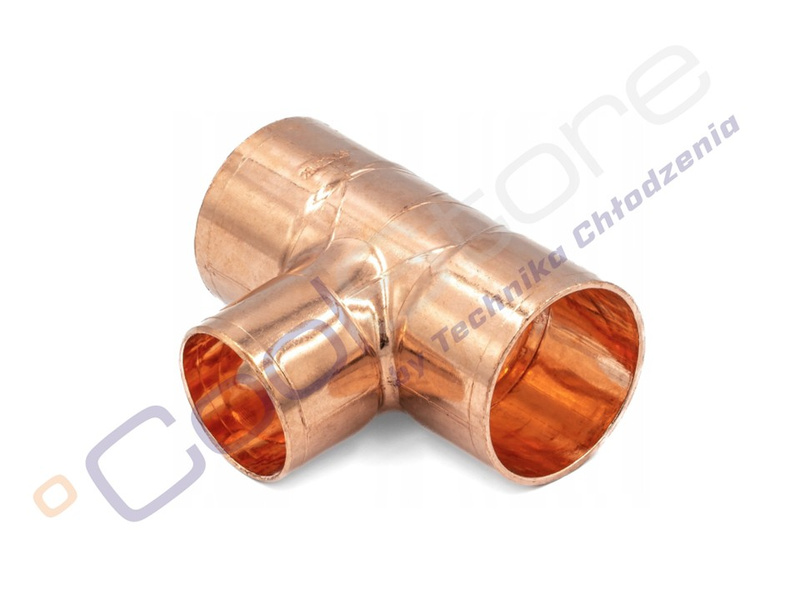

The 15 mm copper tee from the 5000 series is designed for connecting 15 mm copper pipes. The fitting is made of phosphorus-deoxidized copper, designated as Cu-DHP (CW024A). The fittings in the 5000 series are characterized by having relatively thin walls, which results in a smaller external diameter, especially compared to fittings made from other materials. This makes them easy to conceal within the device’s structure. The 15 mm copper tee is joined by soldering with a hard solder containing a minimum of 2% silver. The operating temperature is 120ºC, and the pressure rating is 40 bar. It is suitable for use with refrigerants R-134a, R-404a, R-407c, and R-410a. The 15 mm copper tee is intended for connection with pipes compliant with PN-EN 12735-1 and PN-EN 1057 standards. The 5000 series has PZH certification and comes with a 25-year warranty.
