CONEX BANNINGER – Copper Tee 16 [mm]

CONEX BANNINGER – CU TEE 16 MM

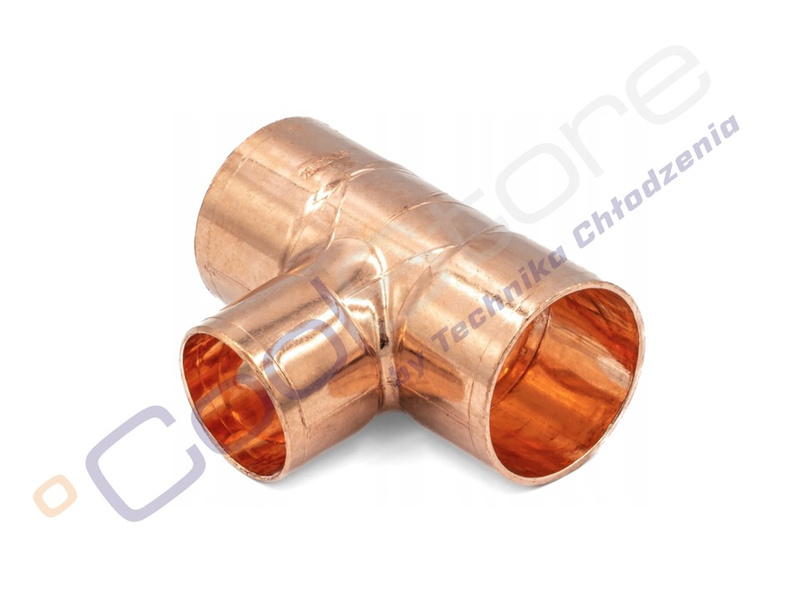

The 16 mm copper tee from the 5000 series is designed for connecting 16 mm copper pipes. The fitting is made of phosphorus-deoxidized copper, marked Cu-DHP (CW024A). Fittings from the 5000 series feature thin wall thicknesses, resulting in a smaller external diameter compared to fittings made from other materials, making them easy to conceal within device constructions. The 16 mm copper tee is joined using hard solder with at least 2% silver content. Its operating temperature is 120 °C and it can withstand a pressure of 40 bar. It is suitable for use with refrigerants R-134a, R-404a, R-407c, and R-410a. The 16 mm copper tee is compatible with pipes conforming to PN-EN 12735-1 and PN-EN 1057 standards. The 5000 series is PZH certified and comes with a 25-year warranty.
