CONEX BANNINGER - Copper Tee 28 [mm]

  • CONEX BANNINGER - Copper Tee 28 [mm]
  • CONEX BANNINGER - Copper Tee 28 [mm]
  • CONEX BANNINGER - Copper Tee 28 [mm]
Producer: CONEX BANNINGER
Product code: INRU _1383
Series:CU_fittings
5,18 €
/ pc.
4,21 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

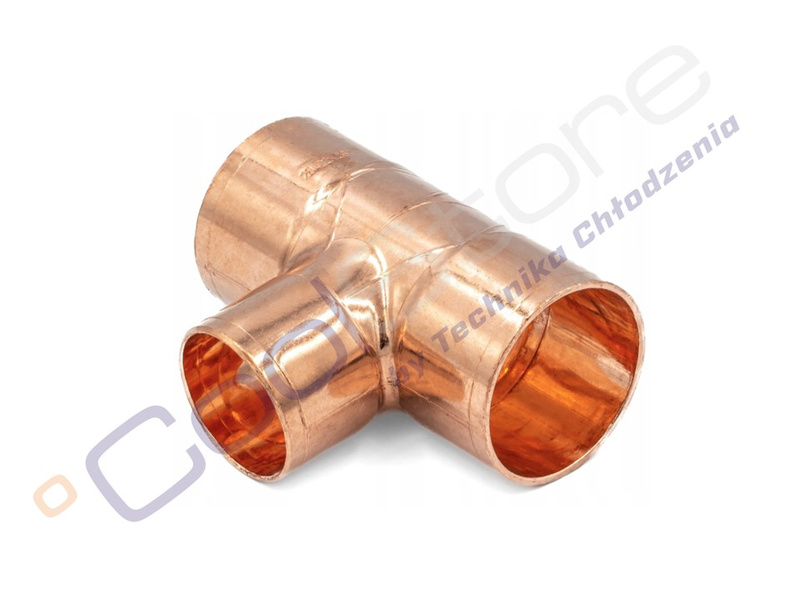

CONEX BANNINGER - COPPER TEE 28 MM

The 28 mm copper tee from the 5000 series is designed for connecting 28 mm copper pipes. The fitting is made from phosphorus-deoxidized copper, designated as Cu-DHP (CW024A). The 5000 series fittings are characterized by relatively thin walls, which results in a smaller outer diameter compared to other materials used for different types of fittings. This makes them easy to conceal within the structure of a device. The 28 mm copper tee is joined by brazing with a hard solder containing a minimum of 2% silver. The operating temperature is 120ºC, and the working pressure is 40 bar. It is suitable for use with refrigerants R-134a, R-404a, R-407c, and R-410a. The 28 mm copper tee is intended for connection with pipes compliant with standards PN-EN 12735-1 and PN-EN 1057. The 5000 series has a PZH certificate and is covered by a 25-year warranty.

Tech specs:
Diameter:
28 mm
Type CU:
Cu-DHP
a:
35 mm
Z:
15 mm
Connection type:
muffle
Pictures:
illustrative
Manufacturer/responsible entity in the EU :
IBP Instalfittings Sp. z o.o. ul. Stanisława Zwierzchowskiego 29, 61-248 Poznań, Poland kontaktPL@ibpgroup.com
