CONEX BANNINGER - TRÓJNIK CU 42 MM

CONEX BANNINGER - TRÓJNIK CU 42 MM

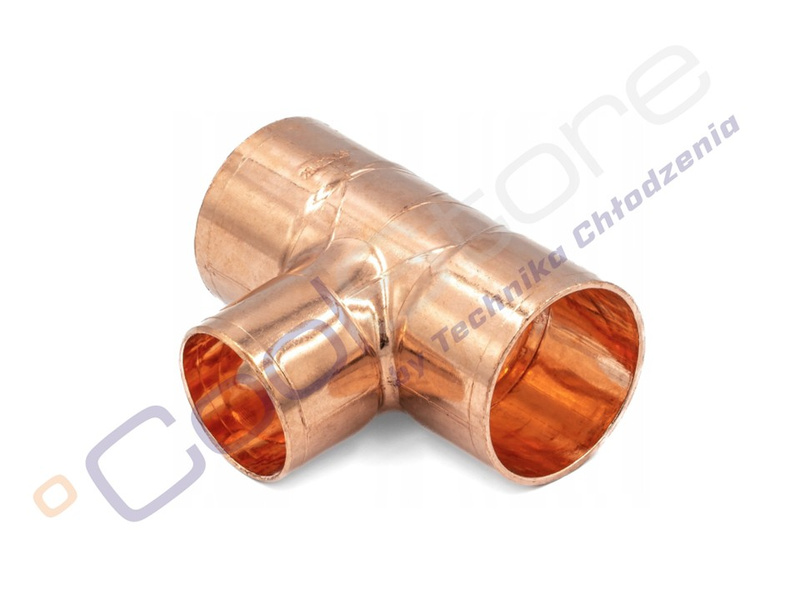

The 42 mm copper tee from the 5000 series is designed for connecting 42 mm copper pipes. The fitting is made from phosphorus-deoxidized copper, designated as Cu-DHP (CW024A). The 5000 series fittings are characterized by relatively thin walls, which results in a smaller outer diameter compared to other materials used for different types of fittings. This makes them easy to conceal within the structure of a device. The 42 mm copper tee is joined by brazing with a hard solder containing a minimum of 2% silver. The operating temperature is 120ºC, and the working pressure is 40 bar. It is suitable for use with refrigerants R-134a, R-404a, R-407c, and R-410a. The 42 mm copper tee is intended for connection with pipes compliant with standards PN-EN 12735-1 and PN-EN 1057. The 5000 series has a PZH certificate and is covered by a 25-year warranty.
