CONEX BANNINGER - CU tee 1/2"

  • CONEX BANNINGER - CU tee 1/2"
  • CONEX BANNINGER - CU tee 1/2"
Producer: CONEX BANNINGER
Product code: INRU _1968
Series:CU_fittings
5,83 €
/ pc.
4,74 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

CONEX BANNINGER - TRÓJNIK CU 1/2"

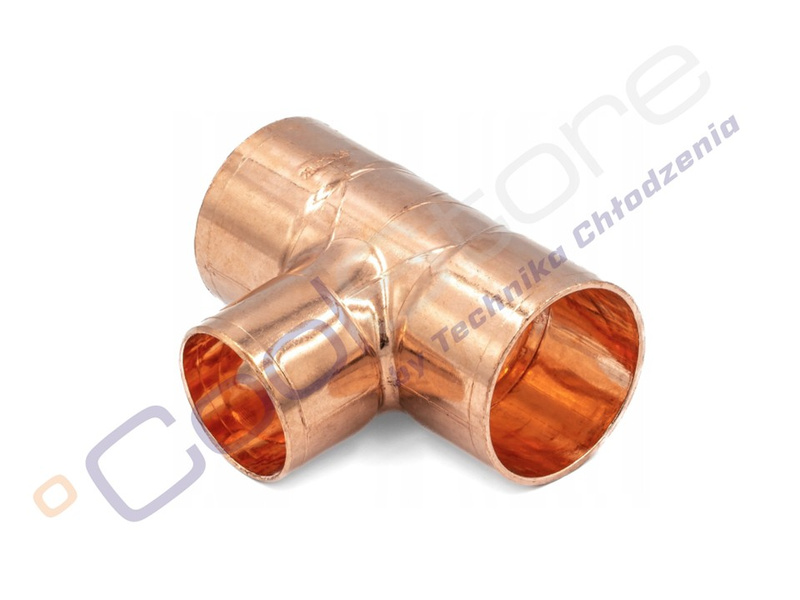

The 1/2" copper tee from the ACR (Air Conditioning and Refrigeration) series is designed for connecting copper pipes with a diameter of 12.70 mm. The connector is made of phosphorus-deoxidized copper with the symbol Cu-DHP (CW024A). ACR series fittings are characterized by their thin walls, which means a smaller outer diameter, especially in comparison to other materials used to manufacture other fittings. This makes them easy to hide in the device structure. The 1/2" copper tee is connected by soldering with a hard solder containing at least 2% silver. The operating temperature ranges from -50ºC to +150ºC. It is suitable for use with R-134a, R-404a, R407c, and R410a refrigerants. The copper tee is designed for connection to pipes compliant with PN-EN 12735-1 and PN-EN 1057.

Tech specs:
Diameter:
1/2" - 12,70 mm
Type CU:
Cu-DHP
Pictures:
illustrative
Manufacturer/responsible entity in the EU :
IBP Instalfittings Sp. z o.o. ul. Stanisława Zwierzchowskiego 29, 61-248 Poznań, Poland kontaktPL@ibpgroup.com
