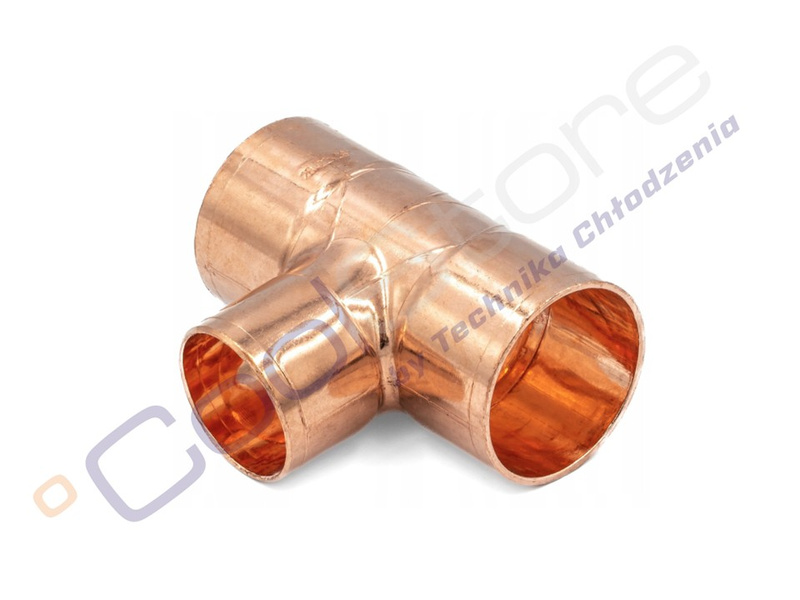

CONEX BANNINGER - CU 5/8" tee

  • CONEX BANNINGER - CU 5/8" tee
  • CONEX BANNINGER - CU 5/8" tee
Producer: CONEX BANNINGER
Product code: INRU _1969
Series:CU_fittings
8,07 €
/ pc.
6,56 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

CONEX BANNINGER - CU 5/8" TEE

Trójnik miedziany 5/8" z serii ACR (Air Conditioning and Refrigeration) przeznaczony jest do łączenia rur miedzianych o średnicy 15,88 mm. Łącznik wyprodukowany jest z miedzi odtlenionej fosforem o symbolu Cu-DHP (CW024A).Kształtki serii ACR cechują się tym, że mają niewielkie grubości ścianek - oznacza to mniejszą średnicę zewnętrzną, szczególnie w stosunku do innych surowców, z których wykonuje się inne kształtki . Łatwo więc je schować w konstrukcji urządzenia. Łączenie trójnika miedzianego 5/8" odbywa się po przez lutowanie spoiwem (lutem) twardym o zawartości srebra min 2%. Temperatura pracy wynosi od -50ºC do + 150ºC. Przystosowany jest do pracy z czynnikami chłodniczymi R-134a,R-404a,R407c,R410a. Trójnik miedziany przeznaczony jest do łączenia z rurą zgodną z normą PN-EN 12735-1 i PN-EN 1057.

Tech specs:
Diameter:
5/8" - 15,88 mm
Type CU:
Cu-DHP
Pictures:
illustrative
Manufacturer/responsible entity in the EU :
IBP Instalfittings Sp. z o.o. ul. Stanisława Zwierzchowskiego 29, 61-248 Poznań, Poland kontaktPL@ibpgroup.com
