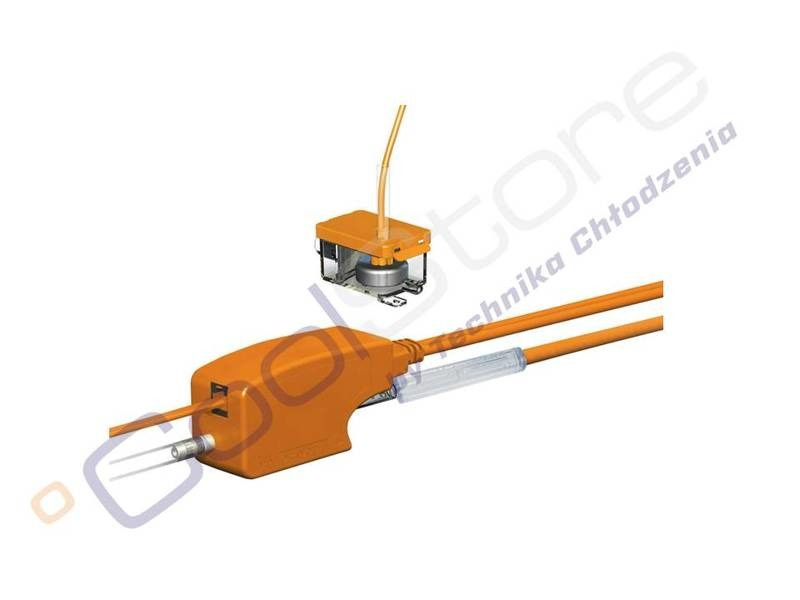

Aspen Silent+ Mini Orange® FP3430 - Air Conditioning Condensate Pump
Aspen Silent+ Mini Orange® FP3430 is a professional condensate pump designed for removing condensate from split, ducted, floor-standing and suspended air conditioning units. Thanks to its 5th generation technology, it delivers ultra-quiet operation, high performance and easy installation in HVAC systems. The unit provides a maximum flow rate of 35 l/h, a maximum head of 10 m, and is suitable for air conditioning systems up to 40 kW (136,000 BTU/h). With an exceptionally low noise level of just 16 dB(A), the pump is ideal for both residential and commercial applications.
Applications The Aspen FP3430 condensate pump is suitable for use in:
- Split and multi-split air conditioning systems
- Ducted air conditioning systems
- Floor-standing air conditioning units
- Suspended air conditioning units
A proven solution for HVACR installers looking for a reliable and exceptionally quiet condensate removal pump for air conditioning systems.
| Max. flow: | 35 L/h |
| Discharge head max: | 10 m |
| Max. suction lift: | 1,5 m |
| Sound level: | 16 dB(A) |
| Power supply: | 100~250 VAC, 0.18A, 2.4W, 50/60 Hz |
| Rated: | Continuous |
| Class: | II |
| Max. unit output: | 40kW (136 000 BTU/h) |
| Maximum ambient temperature: | 40°C |
| Max. water temperature: | 40°C / 104°F |
| Discharge tube: | 6mm ID |
| IP Protection: | IP24 |

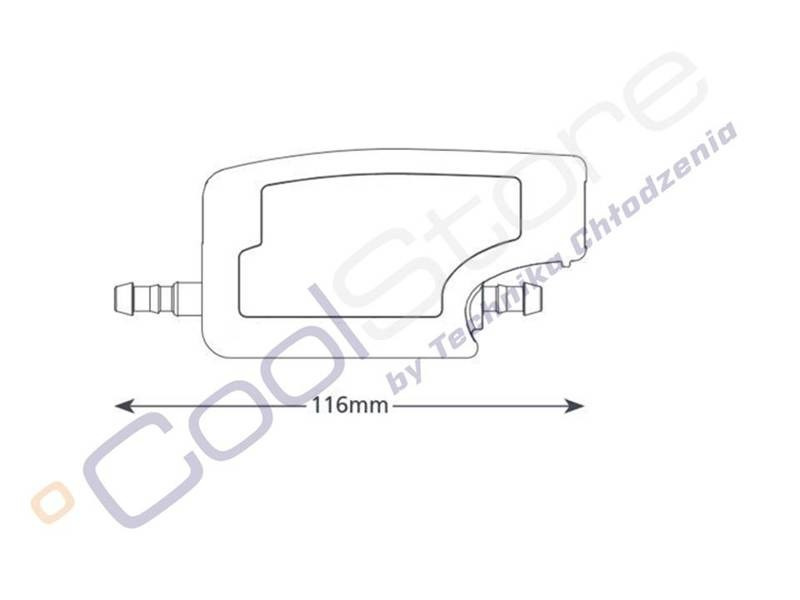

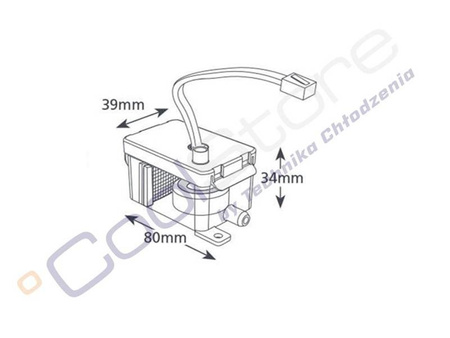

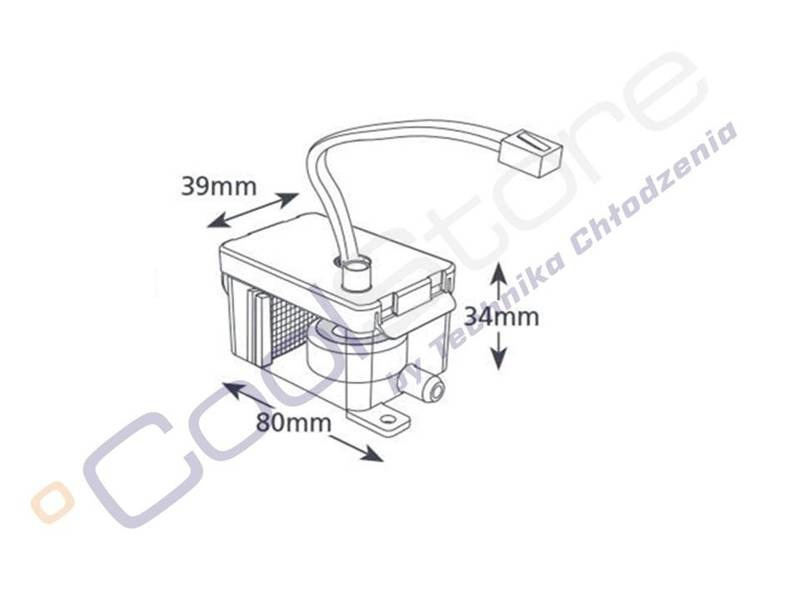

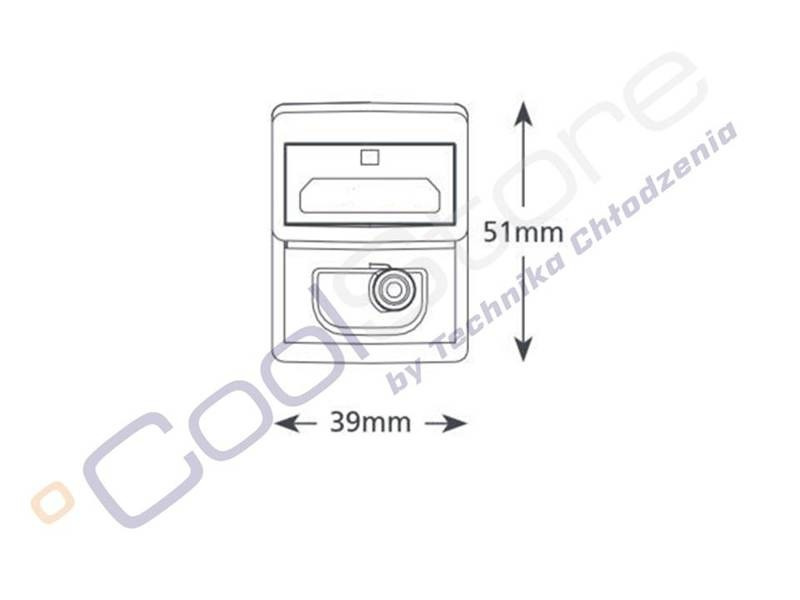

| Wymiary produktu (D x S x W): | 325 x 135 x 60 mm |
| Safety switch: | 5.0 A NO & NC |
| Self priming: | ✓ |
| Pictures: | illustrative |
| Warranty: | 36 months |
| Producer: | Aspen Pumps Apex Way, Hailsham, East Sussex, BN27 3WA, UK +44 (0) 1323 848842 |
| Distributor: | Technika Chłodzenia Spółka z o.o. 41-807 Zabrze ul. Pyskowicka 24, tchw@tchw.pl , +48 32 37 37 930 |
36 months - Warranty is granted by the seller for a period of 36 months.
