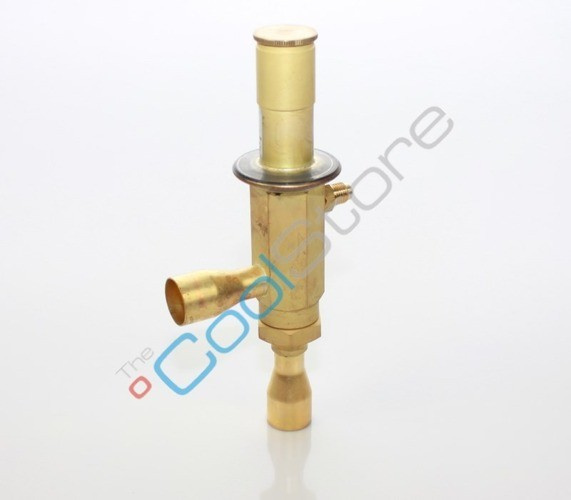

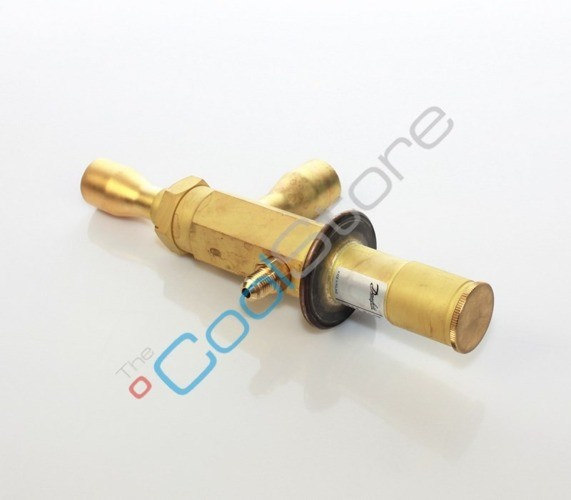

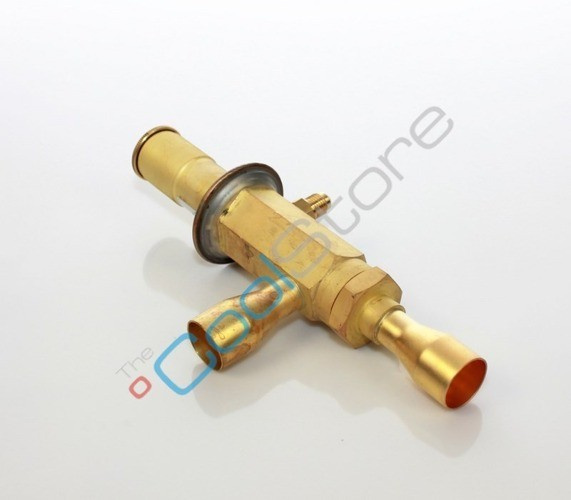

Capacity regulator Danfoss CPCE 12 034N0082

  • CPCE-controller is used to adjust the compressor capacity to the actual evaporator load.
  • Capacity regulator Danfoss CPCE 12 034N0082
  • Capacity regulator Danfoss CPCE 12 034N0082
  • Capacity regulator Danfoss CPCE 12 034N0082
Producer: DANFOSS
Product code: AUDA_8599
Series:Danfoss_38_40
465,56 €
/ pc.
378,50 €
net / pc.
Add to wish list

Capacity regulator Danfoss CPCE 12 034N0082




Characteristic
 Value
Type CPCE 12
Inlet connection type Solder
Inlet size 1/2 IN
Inlet size 12 mm
Max. Working Pressure [bar] 28,0 bar
Outlet connection type Solder
Outlet size 1/2 IN
Outlet size 12 mm
Rated capacity R134a [kW] 7,90 kW
Rated capacity R22 [kW] 17,40 kW
Rated capacity R404A/R507 [kW] 16,40 kW
Rated capacity R407C [kW] 19,00 kW
Regulating range [bar] 0,0 - 6,0 bar


Rated capacity is the performance of the controller:

  • evaporation temperature te=-10°C
  • condensing temperature tc=+30°C
  • lower temp. / pressure Δts=CPCE: 4 K.
Tech specs:
Pictures:
illustrative
