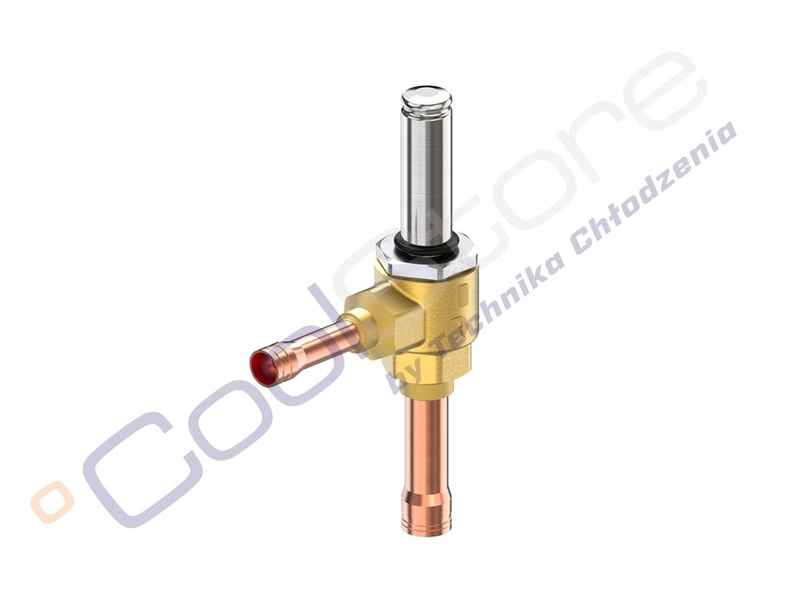

Elektroniczny zawór rozprężny Danfoss AKV 10-2 068F1165

  • AKV jest sterowanym elektronicznie zaworem rozprężnym stosowanym w instalacjach chłodniczych.
  • Elektroniczny zawór rozprężny Danfoss AKV 10-2 068F1165
  • Elektroniczny zawór rozprężny Danfoss AKV 10-2 068F1165
Producer: DANFOSS
Product code: 068F1165
176,87 €
/ pc.
143,80 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Elektroniczny zawór rozprężny Danfoss AKV 10-2 068F1165


Charakterystyka Wartość
Typ AKV 10-2
Wydajność dla R22 1,6 kW
Wydajność dla R134a 1,4 kW
Wydajność dla R404A/R507 1,3 kW
Wydajność dla R407C 1,7 kW
Wartość KV 0,017 m3/h
Przyłącze wejściowe 10 mm
Przyłącze wylotowe 12 mm

Wydajność nominalna jest określona przy:

  • temp. skraplania                 tc=32ºC
  • temp. cieczy                        tl=28ºC
  • temp. parowania                  te=5ºC

Dane techniczne:

Charakterystyka Wartość
Typ zaworu AKV 10
Tolerancja napiecia cewki +10 / -15%
Obudowa wg IEC529 maks. IP 67
Zasada działania  Modulacja Czasu Impulsu
Zalecany okres załączenia 6 sekund
Wydajność (404A/R507) od 0,8 do 12 kW
Zakres regulacji do 10 do 100 %
Przyłącze do lutowania
Temp. parowania od -60°C do 60°C
Temp. otoczenia od -50°C do 50°C
Nieszczelność gniazda zaworu < 0,02% wartość współ. KV
MOPD 18 bar
Wymienny filtr wew. 100 µm
Maksymalne ciśnienie pracy (MWP) PS=42 bar g
Tech specs:
