CONEX BANNINGER - Reduction nipple CU 35 x 28 [mm]

CONEX BANNINGER - REDUCING NIPPLE CU 35 x 28 MM

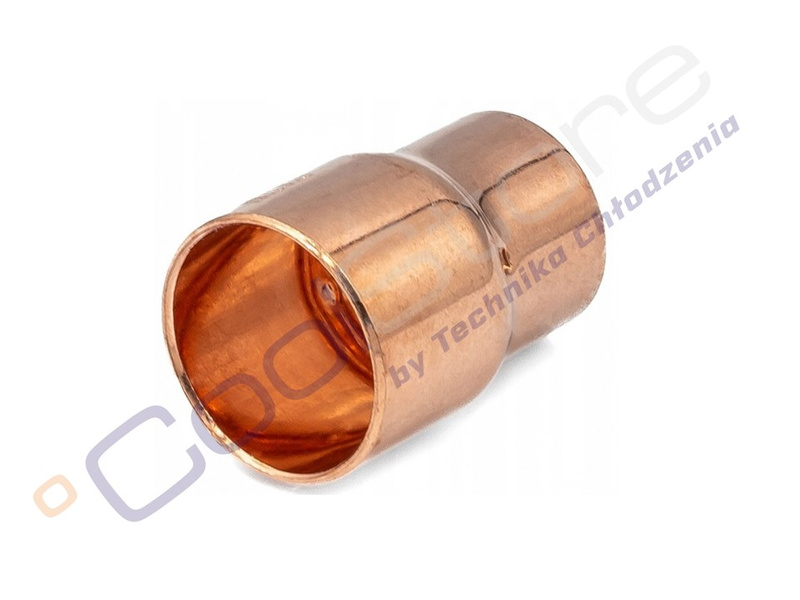

The 35 x 28 mm copper reduction nipple from the 5000 series is designed for connecting copper pipes of different diameters, i.e., 35 and 28 mm. The connector is made of phosphorus-deoxidized copper with the symbol Cu-DHP (CW024A). The 5000 series fittings are characterized by their thin walls, which means a smaller outer diameter, especially in comparison to other materials used to manufacture other fittings. This makes them easy to hide in the device's structure. The 35x28 mm copper reduction nipple is connected by soldering with a hard solder containing at least 2% silver. The operating temperature is 120ºC and the pressure is 40 bar. It is suitable for use with R-134a, R-404a, R407c, and R410a refrigerants. The 35x28 mm copper reduction nipple is designed for connection to pipes compliant with PN-EN 12735-1 and PN-EN 1057. The 5000 series is PZH certified.
