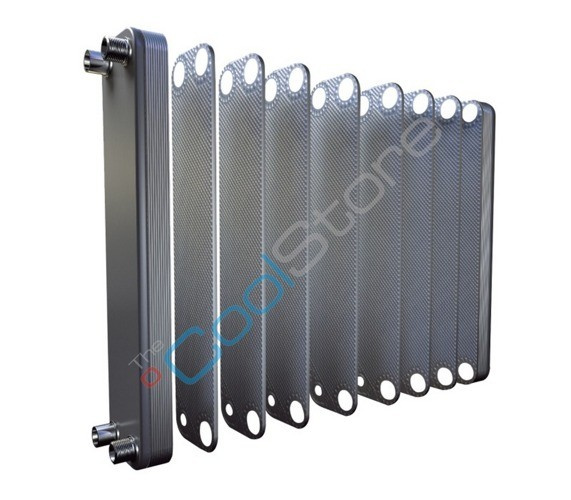

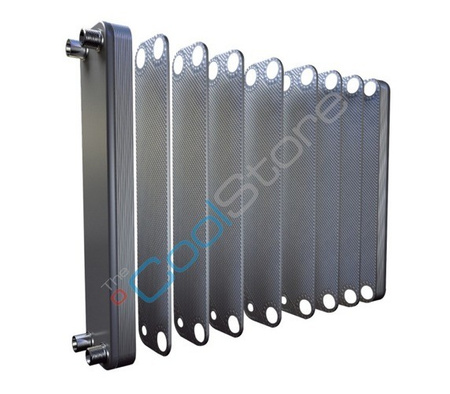

Micro plate heat exchangers Danfoss D22L-26 021H1290

  • With a robust and resource-efficient design, the D55 is designed to operate efficiently year after year in a whole range of applications.
  • Micro plate heat exchangers Danfoss D22L-26 021H1290
  • Micro plate heat exchangers Danfoss D22L-26 021H1290
Producer: DANFOSS
Product code: CHDA_00013
Series:Mikro-płytowe wymienniki ciepła
326,86 €
/ pc.
265,74 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Micro plate heat exchangers Danfoss D22L-26  021H1290

TECHNICAL DATA



Application: Condenser;

Max. working pressure: 45 bar;

Condenser rated capacity: 4,0 kW;

Conditions:

  • Condenser Design conditions (Ref.): R410a; Tskr = 40ºC; Przegrzanie 2K;
  • Condenser Design conditions (water): Twej = 32ºC; Twyj = 37ºC; Spadek ciśnienia 50kPa;

Number of plates: 26;

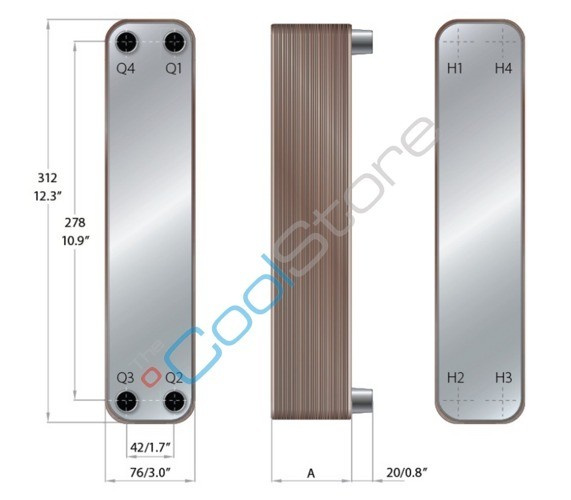

Connection type (Ref.):

  • Connection in thread / solder Q3: 3/4" / 5/8";
  • Connection out thread / solder Q4: 3/4" / 5/8";;

Connection type (water):

  • Connection in thread / solder Q1 (gwint/lut): 3/4" / 5/8";
  • Connection out thread / solder Q2 (gwint/lut): 3/4" / 5/8";

Plate surface: 0,022 m2;

Exchanger surface:  0,572 m2;

Thickness (A): 39 mm;

If you are interested in the selection of the heat exchanger, please contact us:

info@coolstore.pl

Tech specs:
Pictures:
illustrative
