SAI - 25W fan motor

  • SAI - 25W fan motor
  • SAI - 25W fan motor
  • SAI - 25W fan motor
  • SAI - 25W fan motor
Producer: SAI
Product code: SKCZ_00009
Series:Silniczki wentylatorów - Saiwei
21,60 €
/ pc.
17,56 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

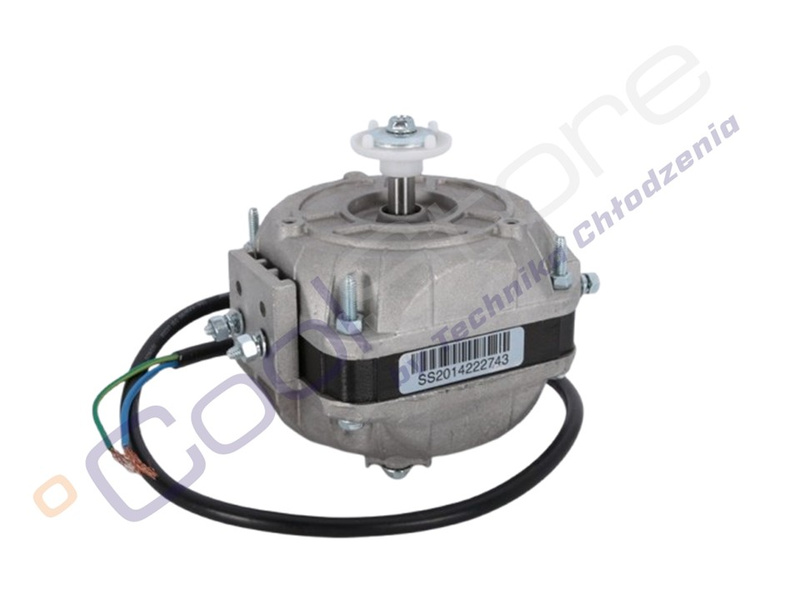

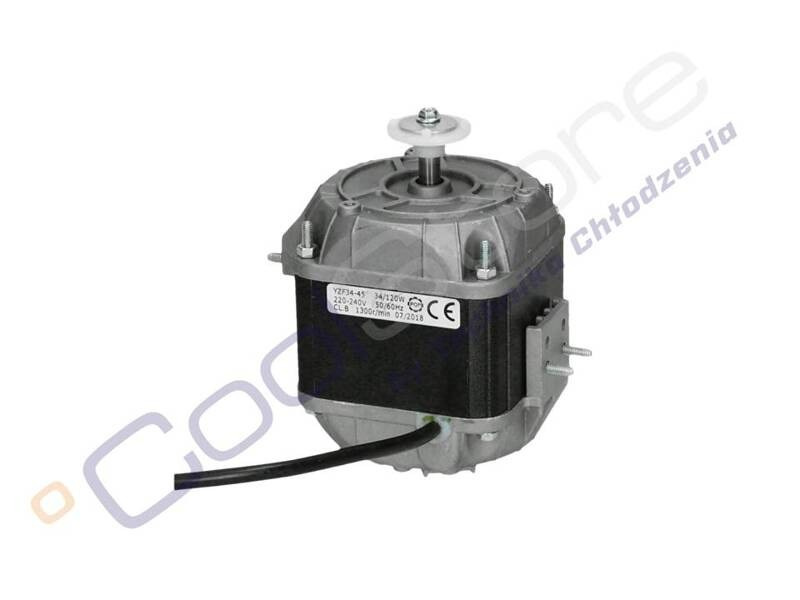

SAI - 25W FAN MOTOR BALL BEARING

For a fan to operate smoothly, all its components must function efficiently and in proper synchrony. Since the individual parts depend on one another, even a minor malfunction can lead to the entire device stopping. The most common cause of failures is motor wear, which is why choosing a durable and resistant model is crucial. One such reliable solution is the Sai 25W motor with a ball bearing, distinguished by excellent parameters — a rotational speed of 1300 r/min, a maximum current draw of 0.50 A — and a solid yet lightweight construction weighing only 1.80 kg.

Thanks to its well-designed structure, the Sai 25W motor offers many mounting possibilities, making it highly versatile in use. It can operate both in refrigeration cabinets and in small condensing units, and the maximum diameter of a compatible fan blade is 300 mm. Additionally, motors in this series can be mounted on brackets, directly on the fan guard, or on a wall ring, which enhances their functionality and adaptability to different types of devices.

Tech specs:
Power supply:
230 V, 50 Hz
Bearing type:
kulowe
Operating Temperature:
-30 ÷ +60 °C
Rated speed:
1300 r/min
Imput power:
58 W
IP Protection:
IP42
Power consumption:
max. 50 A
Weight:

net

1,8 kg
Pictures:
illustrative
