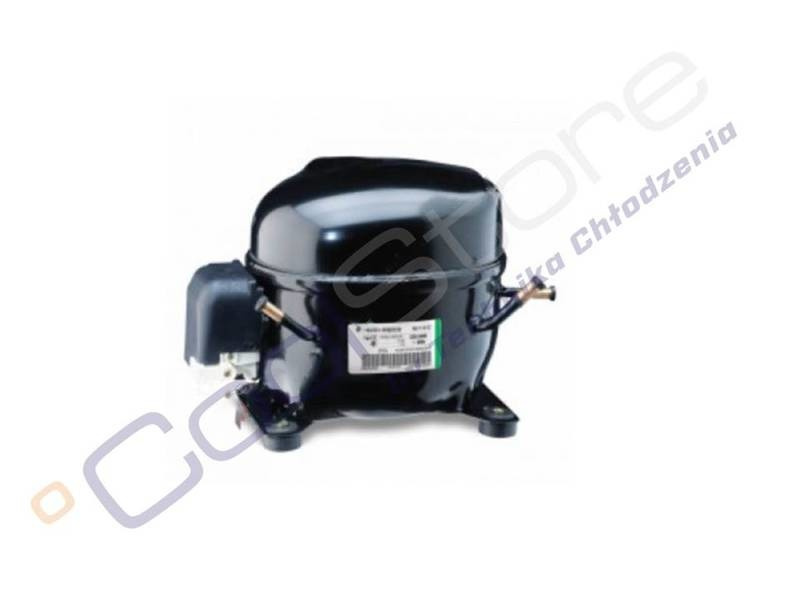

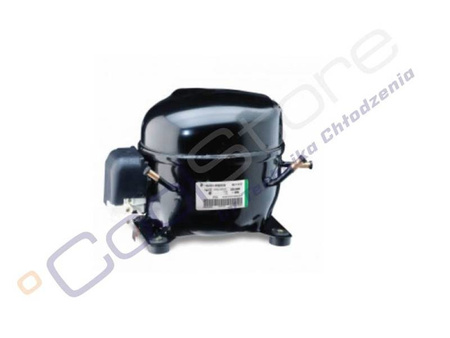

Compressor Aspera R134a EMT22HLP

  • Compressor Aspera for small refrigeration units.
  • Compressor Aspera R134a EMT22HLP
Producer: ASPERA (EMBRACO)
Product code: SPAS_455
Series:Agregaty i sprężarki Embraco
59,34 €
/ pc.
48,24 €
net / pc.
Add to wish list
Compressor Aspera EMT22HLP
TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

Weight Max. Height
EMT22HLP 3,00 cm3 R-134a 230V/50Hz -30°C~-5°C

POE 22 /180 ml

7,1 kg

 158 mm

Cooling Capacity


Model

Evaporating Temp. / Cooling Capacity R-134a

Condensing Temp.

 -30ºC -25ºC -20ºC -15ºC -10ºC -5ºC
EMT22HLP 55 ºC 37 W 54 W 74 W 99 W 127 W 158 W
45 ºC 50 W 69 W 92 W 118 W 148 W 182 W




Download

CATALOG



Tech specs:
Nominal capacity:
74 W
Refrigerant:
R-134a
volume:
3,00 cm3
Power supply:
230 V / 50 Hz
Temperature range:
-30°C ~ -5°C
Oil Type:
POE 22 / 180 ml
Weight:

net

7,10 kg
Max. Height:
158 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
