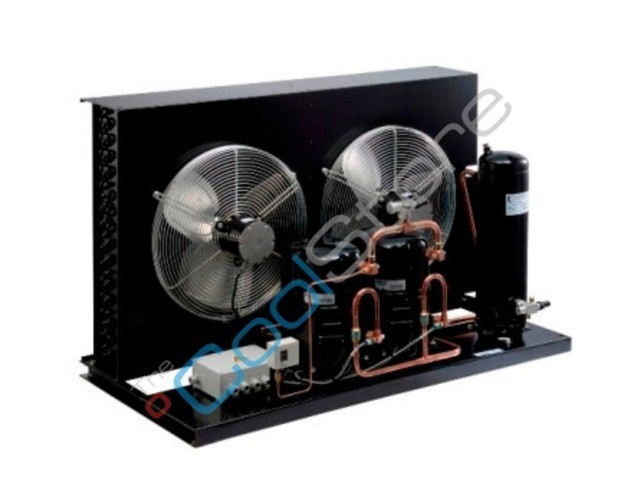

Condensing unit Tecumseh TAGDT 2532 ZBR TZ

Name: Condensing unit Tecumseh TAGDT 2532 ZBR TZ
Brand: Tecumseh
Price: 4785.93 EUR
Availability: OutOfStock

Producer: Tecumseh

Product code: AGLH_00054

Series:Agregaty i sprężarki Tecumseh

Size:

uniwersalny

Our price:

4 785,93 €

/ pc.

3 891,00 €

net / pc.

Quantity:

Add to wish list

Condensing unit Tecumseh TAGDT 2532 ZBR TZ

COOLING CAPACITY


Model	Evaporating Temp. / Cooling Capacity R404A/R507
Model	Ambient temp.	-40ºC	-35ºC	-30ºC	-25ºC	-20ºC	-15ºC	-10ºC
TAGDT 2532 ZBR TZ	32 ºC	3113 W	4612 W	6342 W	8278 W	10386 W	12628 W	14971 W

Tech specs:

Part number:	TAGDT 2532 ZBR TZ
volume:	225,00 cm3
Nominal capacity:	6342 W (-30ºC/+32ºC)
Refrigerant:	R404A , R452A , R448A , R449A
Power supply:	380 V / 50 Hz
Temperature range:	-40°C~-10°C
Fan motors:	2 x 420 mm
Liquid receiver capacity:	6,0 L
Weight: net	154 kg
Pictures:	illustrative

TAGDT 2532 ZBR TZ Download
