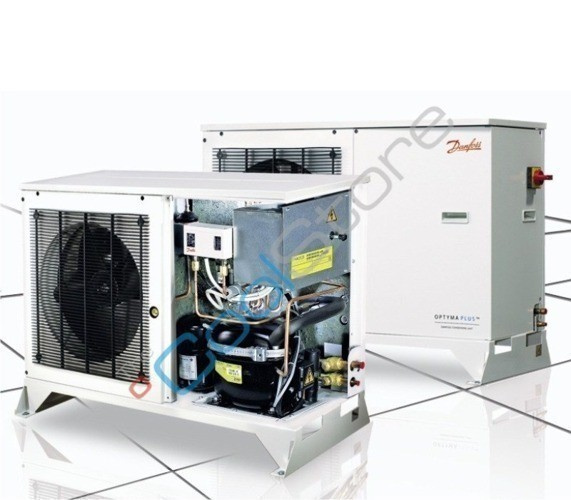

Agregat skraplający Danfoss Optyma OP-MPHM010SCP00G

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPHM010SCP00G
Producer: DANFOSS
Product code: OP-MPHM010SCP00G
Series:Danfoss_38_40
1 898,14 €
/ pc.
1 543,20 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPHM010SCP00G

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPHM007
Sprężarka SC10MLX
Zasilanie 230V / 1 faza / 50Hz
Przyłącze ssawne 3/8"
Przyłacze tłoczne 1/4"
Waga 51 kg
Wymiary (wys.xszer.xdł.) 652x906x356 mm
Średnica went. 1x356 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 570 W / 680 W
Objętość zbiornika [l]
 1,3

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC 570 730 920 1140 1410 1710 -
32ºC 510 650 820 1030 1270 1550 -
38ºC 430 560 710 890 1110 1360 -
43ºC - 480 610 780 970  - -
