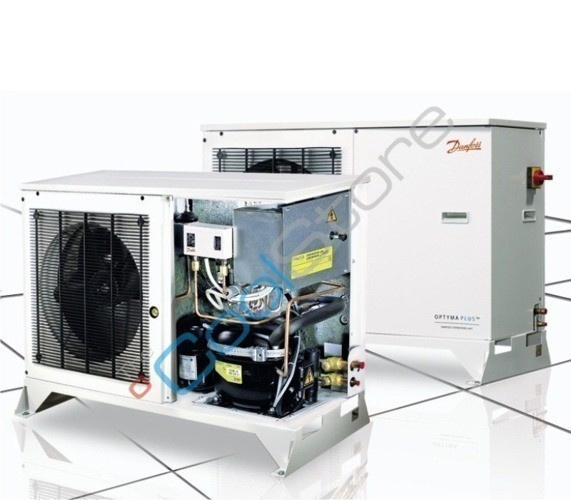

Agregat skraplający Danfoss Optyma OP-MPHM034GSP00G

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPHM034GSP00G
Producer: DANFOSS
Product code: OP-MPHM034GSP00G
2 553,97 €
/ pc.
2 076,40 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPHM034GSP00G

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPHM034
Sprężarka GS26MLX
Zasilanie 230V / 1 faza / 50Hz
Przyłącze ssawne 5/8"
Przyłacze tłoczne

3/8"

Waga 82 kg
Wymiary (wys.xszer.xdł.) 815x1055x430 mm
Średnica went. 1x457 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 1800 W / 2290 W
Objętość zbiornika [l]
3,4

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC - 2620 3240 3960 4800 5770 -
32ºC - 2360 2940 3610 4400 5300 -
38ºC - 2040 2560 3170 3880 4700 -
43ºC - 1780 2250 2790 3430 4180 -
