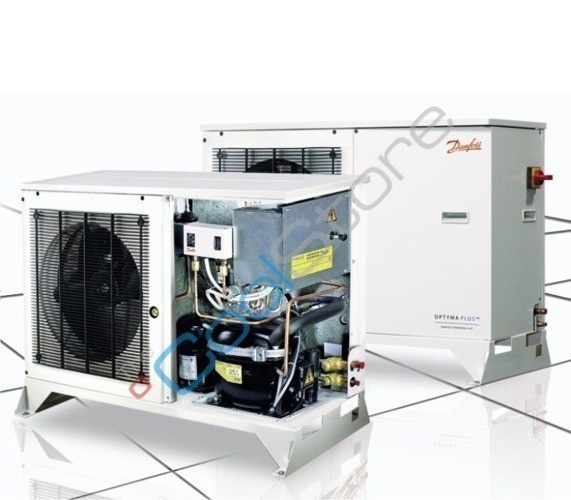

Agregat skraplający Danfoss Optyma OP-MPUM046MLP00G

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPUM046MLP00G
Producer: DANFOSS
Product code: AGDA_540
Series:Danfoss_38_40
4 071,30 €
/ pc.
3 310,00 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPUM046MLP00G

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPUM04
Sprężarka MLZ021
Zasilanie 230V / 1 faza / 50Hz
Przyłącze ssawne 3/4"
Przyłacze tłoczne

1/2"
Waga 90 kg
Wymiary (wys.xszer.xdł.) 815x1055x430 mm
Średnica went. 1x457 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 2400 W /2700 W
Objętość zbiornika [l]
 3,4

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC 3400 4100 4950 4850 5850 7900 9100
32ºC 3100 3750 4500 5350 6250 7250 8400
38ºC 2750 3350 4000 4750 5550 6500 7500
43ºC 2400 2950 3550 4200 4950 5800 -
