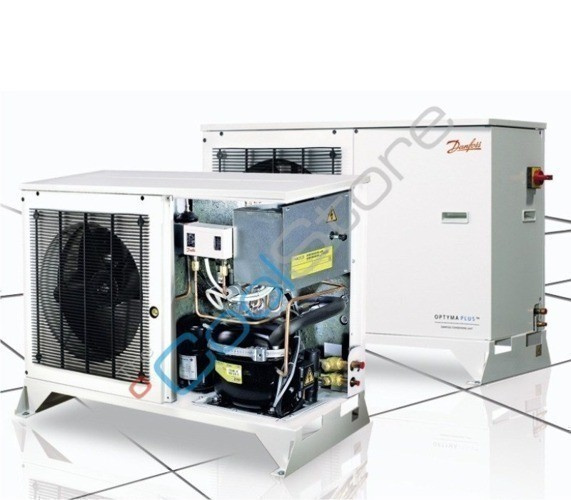

Agregat skraplający Danfoss Optyma OP-MPUM125MLP00E

  • OPTYMA PLUS™ – ciche agregaty skraplające do szybkiej instalacji. Łączy w sobie wysoką wydajność przy małych gabarytach jednostki, cichą pracę i obudowę odporną na warunki atmosferyczne.
  • Agregat skraplający Danfoss Optyma OP-MPUM125MLP00E
Producer: DANFOSS
Product code: OP-MPUM125MLP00E
Series:Danfoss_38_40
8 720,70 €
/ pc.
7 090,00 €
net / pc.
Add to wish list

Agregat skraplający Danfoss Optyma OP-MPUM125MLP00E

DANE TECHNICZNE



Charakterystyka Wartość
Typ OP-MPUM125
Sprężarka MLZ058
Zasilanie 400V / 3 faza / 50Hz
Przyłącze ssawne 1 1/8"
Przyłacze tłoczne

3/4"
Waga 143 kg
Wymiary (wys.xszer.xdł.) 966x1800x600 mm
Średnica went. 2x609 mm
Pobór mocy przy temp. parowania -10ºC / 5ºC 6600 W / 7250 W
Objętość zbiornika [l]
 10

Warunki testu: EN 13215.
Przegrzanie czynnika na ssaniu 10K (114X3356: 20K przy -45°C).
Wydajność dla temperatury otoczenia 32°C.
Wydajności dla innych wartości temperatur otoczenia – patrz literatura techniczna.


Temp. otoczenia Wydajność chłodnicza [W]
-20ºC -15ºC -10ºC -5ºC 0ºC 5ºC 10ºC
27ºC 9750 11850 14400 17250 20400 23700 27150
32ºC 8750 10700 13050 15750 18650 21750 25000
38ºC 7450 9250 11400 13800 16500 19350 22350
43ºC 6250 7900 9900 12150 14600 17250 20050
Tech specs:
Pictures:
illustrative
