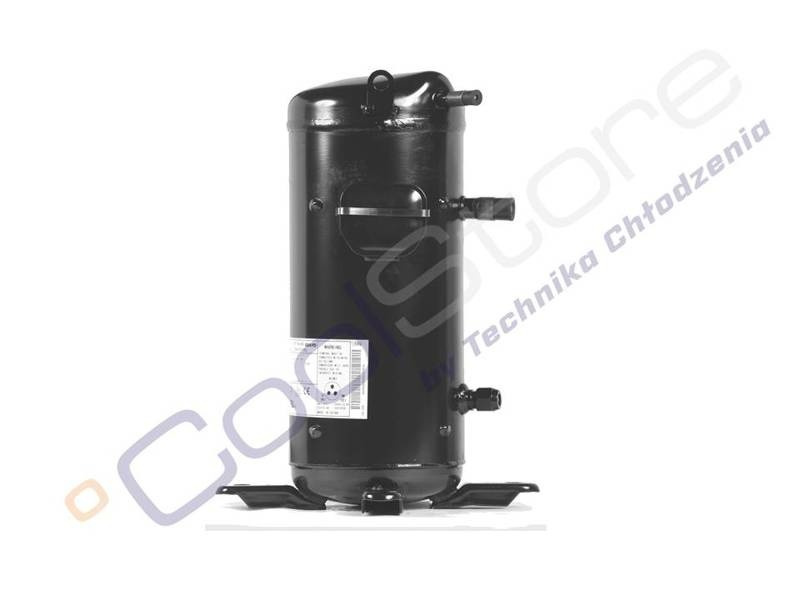

Compressor Scroll Sanyo C-SBS235H38B 19,50 kW R407C 400V

  • Compressor Scroll Panasonic
  • Compressor Scroll Sanyo C-SBS235H38B 19,50 kW R407C 400V
Producer: Panasonic
Product code: SPSC_095
Series:Sprężarki scroll Panasonic
1 086,09 €
/ pc.
883,00 €
net / pc.
Add to wish list

Compressor Scroll Sanyo C-SBS235H38B 19,50 kW R407C 400V

TECHNICAL DATA

Model

Displacement

Refrigerant

 Voltage Evaporating
temperature range

Lubricant typ

 Weight Sound
level
C-SBS235H38B 110,2 cm3 R407C,R404a
R134a,R407F		 380-415V / 50Hz M/HBP

FV68S

 40 kg -

Cooling Capacity


Model

Evaporating Temp. / Cooling Capacity R407C

Condensing Temp.

 -15ºC -10ºC -6,7ºC 0ºC +4,4ºC +7,2ºC +10ºC +12ºC
C-SBS235H38B 54,4 ºC - 10,42 kW 11,75 kW 15,00 kW 17,61 kW 19,50 kW 21,59 kW 23,22 kW
45 ºC 9,70 kW 11,64 kW 13,13 kW 16,76 kW 19,68 kW 21,80 kW 24,14 kW 25,97 kW









Tech specs:
Factory flooded with oil:
Yes
Pictures:
illustrative
