Compressor Aspera NT6222GK

  • Compressor Aspera for small refrigeration units.
  • Compressor Aspera NT6222GK
Producer: ASPERA (EMBRACO)
Product code: SPAS_315
Series:Agregaty i sprężarki Embraco
297,56 €
/ pc.
241,92 €
net / pc.
Add to wish list

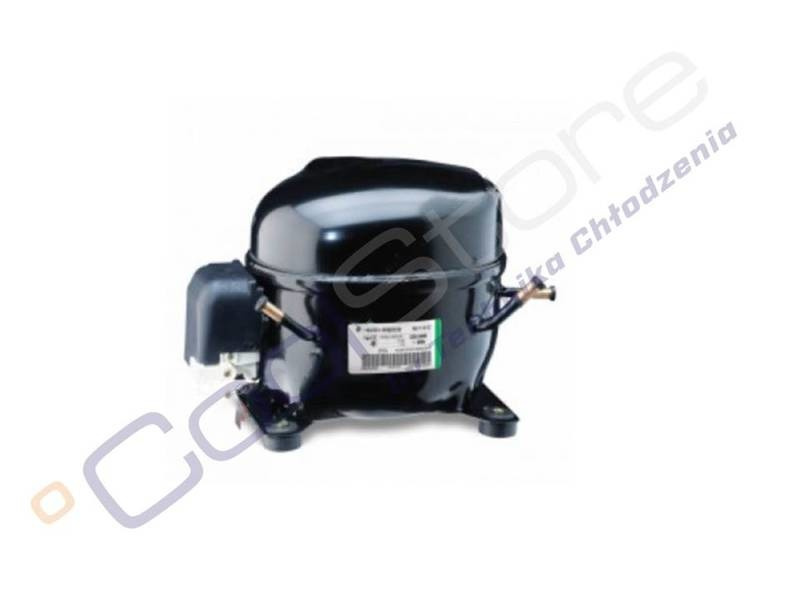

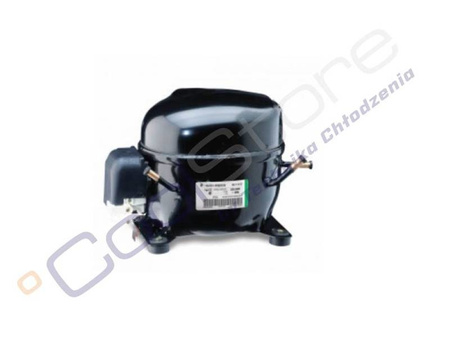

Compressor Aspera NT6222GK

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

Weight Max. Height
NT6222GK 17,39 cm3 R404A/R507 230V/50Hz -20°C~+10°C

POE 22 /450 ml

17,2 kg

 220 mm

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

-20ºC

 -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
NT6222GK 55 ºC -
 -
 995 W 1233 W 1520 W 1850 W 2222 W
45 ºC 839 W 1034 W 1287 W 1597 W 1960 W 2371 W 2830 W


Download

CATALOG



Tech specs:
Nominal capacity:
2482 W
Refrigerant:
R-404a
Volume:
17,39 cm3
Power supply:
230 V / 50 Hz
Temperature range:
-20°C ~ +10°C
Oil Type:
POE 22 / 450 ml
Weight:

net

17,2 kg
Max. Height:
220,0 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
