TESTO 760-1 -Digital multimeter 0590 7601
The TESTO 760-1 digital multimeter is a modern measuring device that automatically detects the parameter being measured—eliminating the need for manual function selection. This prevents incorrect settings, significantly improving both safety and ease of use. It’s an essential tool for everyday measurements of voltage, current, and resistance.
Unlike traditional multimeters, the TESTO 760-1 does not require manual switching of input jacks and measurement functions. Simply connect the test leads, and the device automatically identifies the type of measurement. This smart functionality ensures accurate results while minimizing the risk of operator error.
Precision and reliability are key features of this multimeter. It’s suitable for nearly all standard electrical measurements, making it a versatile solution for both professionals and home users. Its robust design is made for durability and intuitive operation.

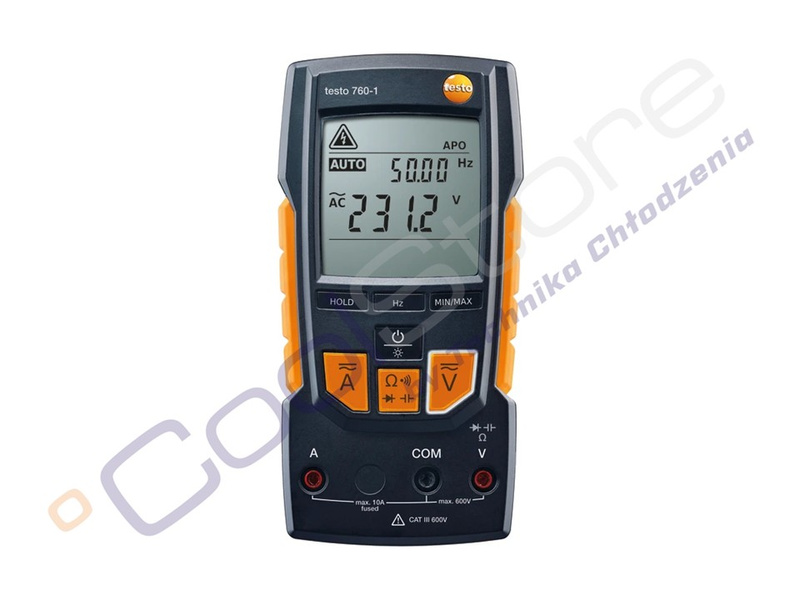

Operating the TESTO 760-1 is especially easy thanks to function keys that replace conventional rotary switches, allowing for one-handed control. The large, backlit display ensures clear and easy-to-read results—even in poorly lit environments—enhancing both comfort and efficiency during measurements.
| DC voltage: | 1 mV do 600 V |
| AC voltage: | 1 mV do 600 V |
| AC current: | 1 mA do 10 A |
| Direct current: | 1 mA do 10 A |
| Rezystencja: | 0,1 Om do 40,00 MOm |
| volume: | 0,01 nF do 100 μF |
| Frequency: | 0,001 Hz do 512,0 kHz |
| Operating humidity: | 0 do 80 %RH |
| Dimensions: | 167 x 85 x 45 mm |
| Operating temperature 805i: | -10 do +50 °C |
| Storage temperature : | -15 do +60 °C |
| Part number: | 0590 7601 |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Testo Sp. z o.o. ul. Wiejska 2 05-802 Pruszków Polska +48 22 863 74 22 +48 22 863 74 01 testo@testo.com.pl |
