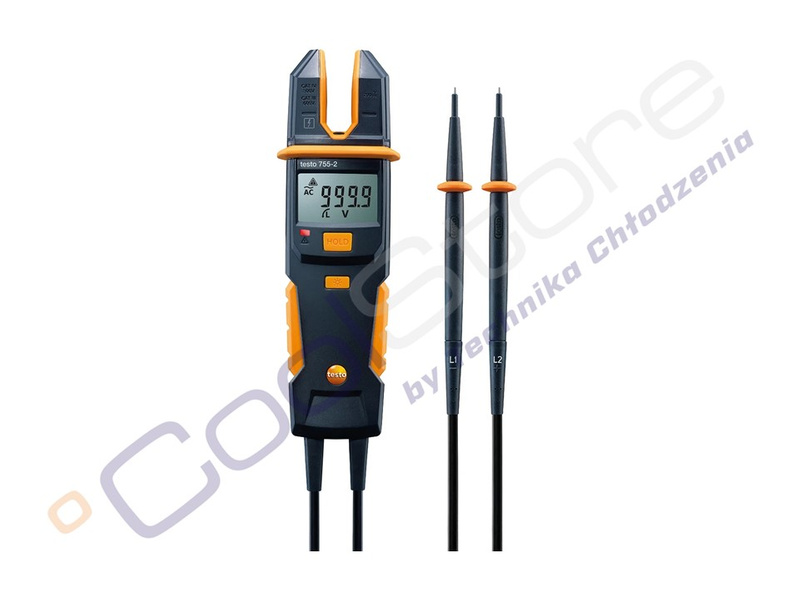

TESTO 755-2 - CURRENT/VOLTAGE TESTER 0590 7552
The TESTO 755-2 is a modern and multifunctional electrical tester, designed with the daily work of installers and electricians in mind. The device enables voltage and current measurement, continuity testing, and checking whether an installation is live – all with a single tool. Thanks to automatic detection of the measurement parameter, operating the device is extremely simple and intuitive.
The tester automatically recognizes the measured quantity once the measurement begins, eliminating the need for manual parameter selection. Replaceable measuring tips allow for easy maintenance – in case of wear or damage, there's no need to replace the entire device. The TESTO 755-2 complies with the DIN EN 61243-3:2010 standard, ensuring safety and adherence to European regulations.
In terms of measurement capabilities, compared to the 755-1 model, the 755-2 offers an extended voltage measurement range – up to 1,000 V. Additionally, it features a phase rotation direction measurement function, which is especially useful in three-phase installations. Furthermore, the device can serve as a single-pole phase tester, enabling quick detection of voltage presence in wires.
Thanks to its functionality and durability, the TESTO 755-2 proves effective in almost any task related to electrical installations. It's the ideal solution for professionals seeking a compact and reliable measuring device that can handle even the most demanding working conditions.
| Operating Temperature: | -10 do +50 °C |
| Measuring range (DC): | 6 do 1000 V / 0,1 V |
| Measuring range (resistance) : | 100 kOm / 1 Om |
| Measuring range (AC): | 6 do 1000 V / 0,1 V |
| Accuracy (DC): | ± (1.5 % of mv + 3 Digit) |
| Overvoltage Category: | CAT IV 600V; CAT III 1000V |
| Protection class: | IP64 |
| Authorizations: | TÜV; CSA; CE |
| Accuracy (AC): | ± (1.5 % of mv + 3 Digit ) |

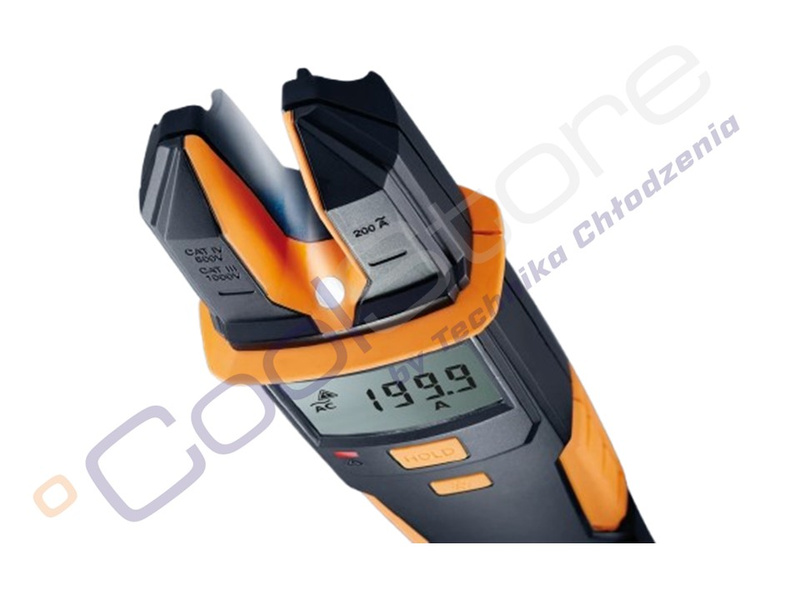

| Measuring range (AC current) : | 200 A / 0,1 A |
| Accuracy (AC current) : | ± (3 % of mv + 3 Digit) |
| Accuracy (NTC) : | ± (1,0 % mierz.wart. + 5 Cyfr(a)(y)) |
| Continuity testing: | yes |
| Display ligthing: | yes |
| Hold: | yes |
| Rotating magnetic field testing: | yes |
| Single pole phase testing: | yes |
| Measuring point illumination: | yes |
| Display: | 4 000 |
| Warranty: | 2 years |
Weight: net | 306 g |
| Dimensions: | 199 x 62 x 40 mm |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Testo Sp. z o.o. ul. Wiejska 2 05-802 Pruszków Polska +48 22 863 74 22 +48 22 863 74 01 testo@testo.com.pl |
