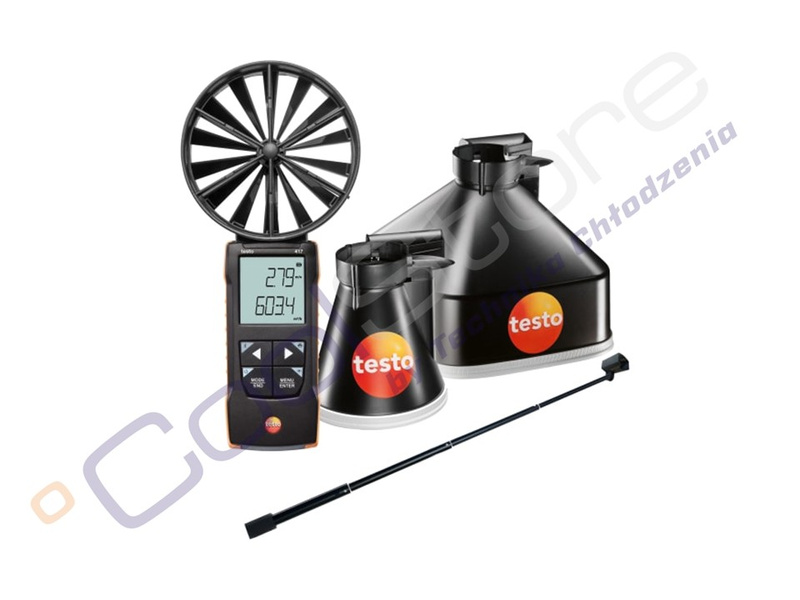

SET TESTO 417 – VANE ANEMOMETER WITH MEASUREMENT CONES AND TELESCOPIC ROD 2700563 1417 01
The Testo 417 is a professional solution for air flow measurement, designed with HVAC technicians and ventilation and air conditioning specialists in mind. The set includes a compact anemometer with a built-in 100 mm vane as well as two measurement funnels – one round and one square – enabling accurate airflow measurements on different types of grilles and air diffusers. Thanks to its lightweight design and intuitive operation, the set is ideal for both system commissioning and routine installation checks.
The device provides precise measurements of air velocity and temperature, and automatically calculates volumetric flow based on the collected data. Users can view time-averaged and point-averaged values, which is particularly helpful when working with systems that have variable air flow rates. A bright, easy-to-read display and straightforward menu allow for quick and hassle-free measurements.
The set is equipped with Bluetooth technology, allowing it to connect to the Testo Smart App on mobile devices. This enables remote control, real-time measurement visualization, and the creation of reports in PDF or CSV formats – greatly simplifying technical documentation. The app also allows for personalized settings and data storage.

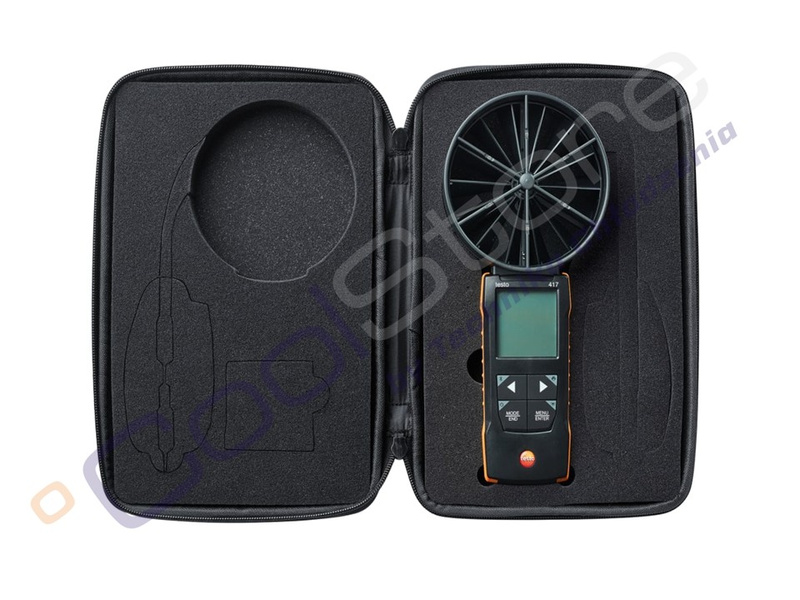

Everything is packed in a sturdy carrying case that protects the equipment during transport. Batteries and a calibration certificate are also included, making the device ready for use right out of the box. Its compact size, reliability, and wide range of applications make the Testo 417 a trustworthy tool for any professional in the industry.
| The kit includes: | Digital Vane Anemometer with Probe Testo 417 0563 0417 ,

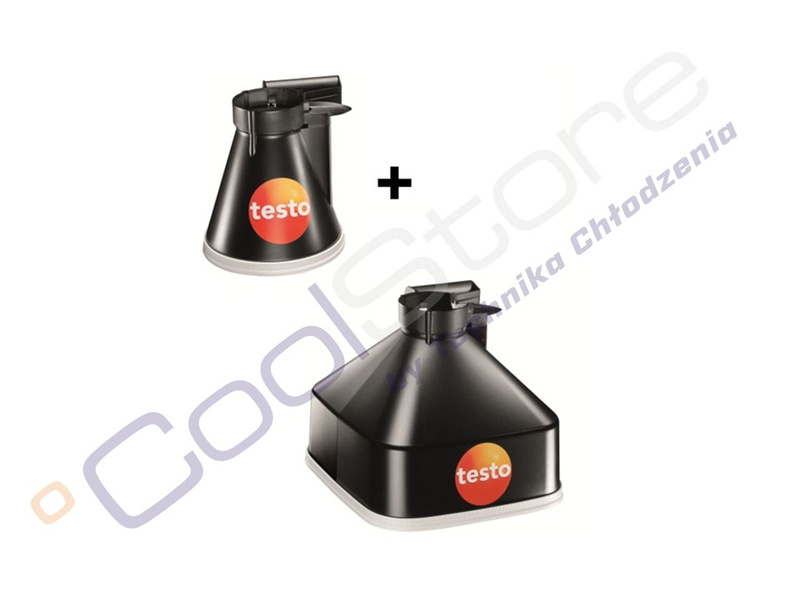

Testo Measurement Cones Set 0563 4170 ,

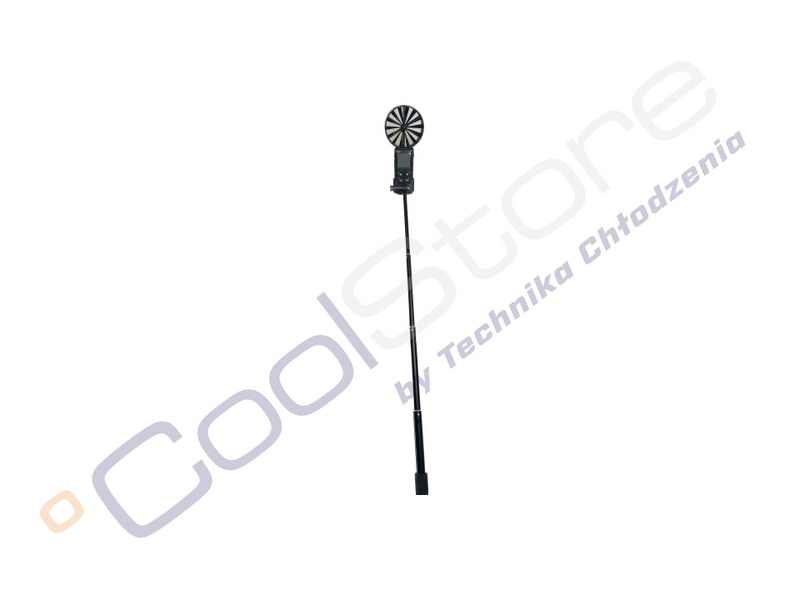

ChatGPT powiedział: Telescopic Rod for Testo 417 Anemometer 27000 0417 |
General Specifications | |
| Battery type: | 3x AA |
| Storage temperature : | -20 to +50 °C |
| Operating Temperature: | -20 do +50 °C |
| Housing material: | ABS + PC / TPE |
| Protection class: | IP10 |
Weight: net | 243 g |
| Battery life: | 50 h |
| Pictures: | illustrative |
| Dimensions: | 236 x 108 x 45 mm |
Air flow | |
| Resolution (air flow): | 0,01 m/s |
| Measuring range (air flow): | 0,3 do 20 m/s |
| Accuracy (air flow: | ±(0,1 m/s + 1,5 % mierz.wart.) |
Temperature - NTC | |
| Accuracy Temperature: | ±0,5 °C |
| Resolution (temperature): | 0,1 °C |
| Measuring range (temperature): | 0 do +50 °C |
Objętość | |
| Measuring range (volume flow): | 0 do +440 m³/godz. (testo 417 w połączeniu z rękawem pomiarowym (0563 4170)) 0 do +99999 m³/godz. 0,1 do +200 m³/godz. , preferowany 0,1 do 100 m³ / h (testo 417 w połączeniu z rękawem pomiarowym i prostownicą przepływu (0554 4172)) |
| Resolution (volume flow) : | 0,1 m³/godz. (0 do +100 ) 1 m³/godz. (pozostały zakres) |
| Manufacturer/responsible entity in the EU : | Testo Sp. z o.o. ul. Wiejska 2 05-802 Pruszków Polska +48 22 863 74 22 +48 22 863 74 01 testo@testo.com.pl |
