Vertical liquid receivers GVN 500 l

  • Vertical liquid receivers GVN 500 l
  • Vertical liquid receivers GVN 500 l
Producer: GVN
Product code: ZBGV_155
Series:Zbiorniki i separatory - GVN
9 009,75 €
/ pc.
7 325,00 €
net / pc.
Add to wish list

Vertical liquid receivers GVN 500 l


Model

Volume

[cm3]

 Connections
Inside
rotalock;
 Outside
rotalock;
VLR-13A-F/F-500 500 ODS 80 mm ODS 80 mm




Work
pressure

 Test

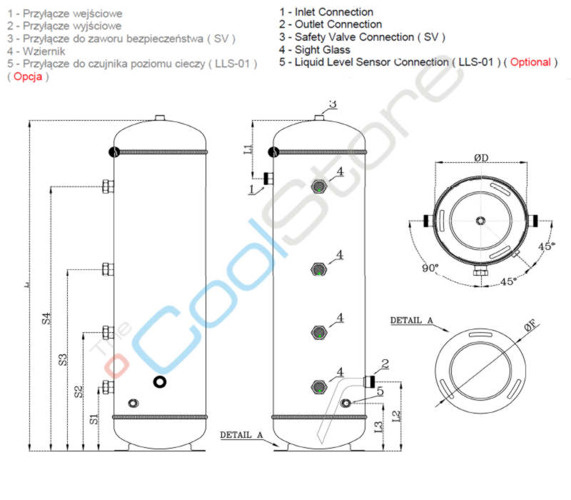

pressure		 Dimensions
D
[mm]		 L
[mm]		 L1
[mm]		 L2
[mm]		 L3
[mm]
33 Bar 48 Bar Ø 600 2020 350 450 320















Tech specs:

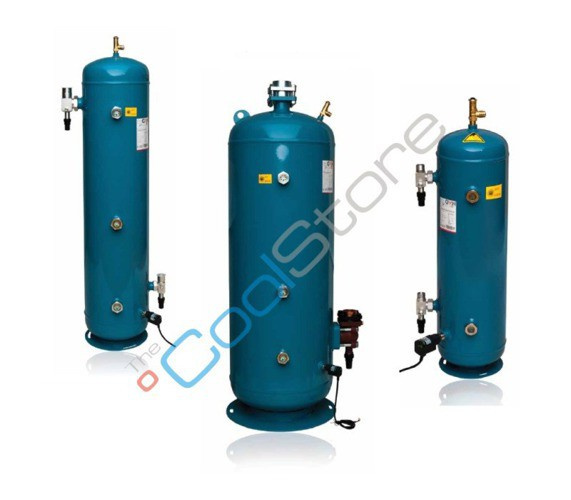

Pictures:
illustrative
