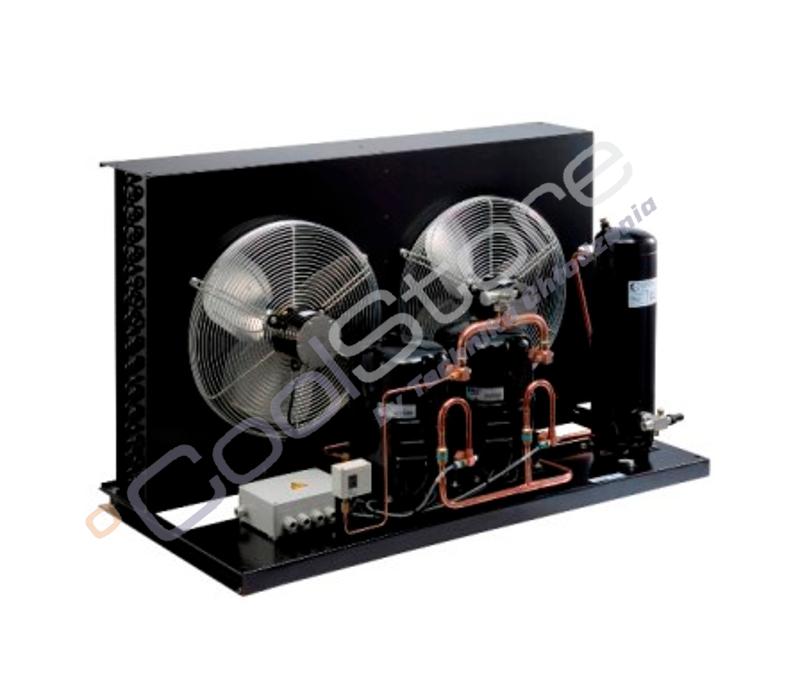

Condensing unit Tecumseh TAGDT 4610 ZHR TZ
COOLING CAPACITY
Model |
Evaporating Temp. / Cooling Capacity R404A/R507 |
|||||||||
Ambient |
-25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | +10ºC | +15ºC | |
TAGDT 4610 ZHR TZ | 32 ºC | 6381 W |
8672 W | 11245 W | 14067 W | 17094 W | 20265 W | 23509 W | 26750 W | 29927 W |
Tech specs:
Part number: | TAGDT 4610 ZHR TZ |
volume: | 201,40 cm3 |
Nominal capacity: | 14067 W (-10ºC/+32ºC) |
Refrigerant: | R404A ,
R452A ,
R448A ,
R449A |
Voltage : | 380 V / 50 Hz |
Temperature range: | -25°C~+15°C |
Fan motors: | 2 x 420 mm |
Liquid receiver capacity: | 9,5 L |
Weight: net | 179,00 kg |
Pictures: | illustrative |
