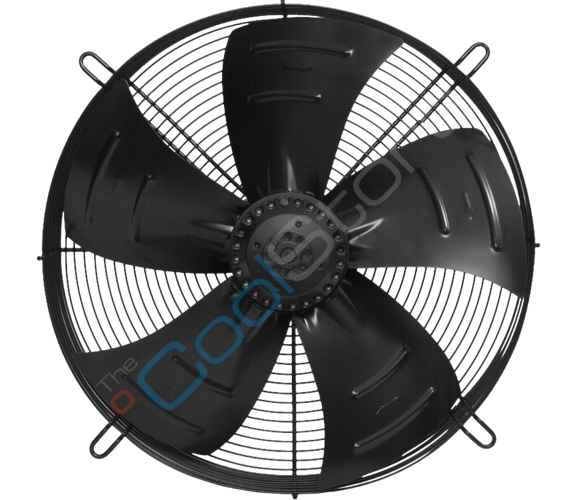

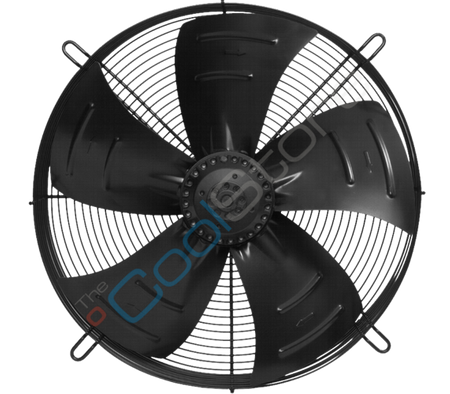

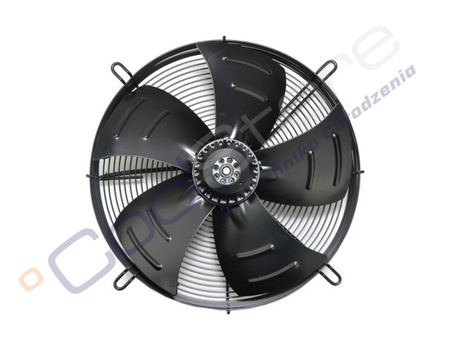

Olvent Pull Fan YWF.A4T-400S-5DIII 380V
OLVENT axial fans are used in air conditioning, ventilation, refrigeration, heating systems. A wide range of destination due to the large variety of fan: suction or blowing, single or three-phase power supply, diameter from 250 to 900 mm, as well as good qualities: a wide temperature range of application, any method of installation. In addition, to meet the requirements of the ErP Directive 2015 makes it possible to use fans in each application.
Tech specs:
| Diameter: | 400 mm |
| Power supply: | 380 V / 50 Hz |
| Flow: | Suction |
| Rated speed: | 1370 obr/min |
| Air volume: | 3500 m3/h |
| Current.: | 0,5 A |
| Input: | 190 W |
| Capacitor: | - |
| Sound level: | 60 dB(A) |
| Internal thermal protection: | 150±5°C |
| IP Protection: | 54 IP |
Weight: net | 7,0 kg |
| Directive ErP 2015: | ✓ |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Technika Chłodzenia Sp. z o.o. ul. Pyskowicka 24 41-807 Zabrze tel. 32 37 37 930 fax. 32 37-37-931 e-mail: tchw@tchw.pl |
