Condensing unit AA-MKS/MTZ-100

  • Condensing unit AA-MKS/MTZ-100
Producer: NESSUN
Product code: AA-MKS/MTZ-100
2 864,67 €
/ pc.
2 329,00 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

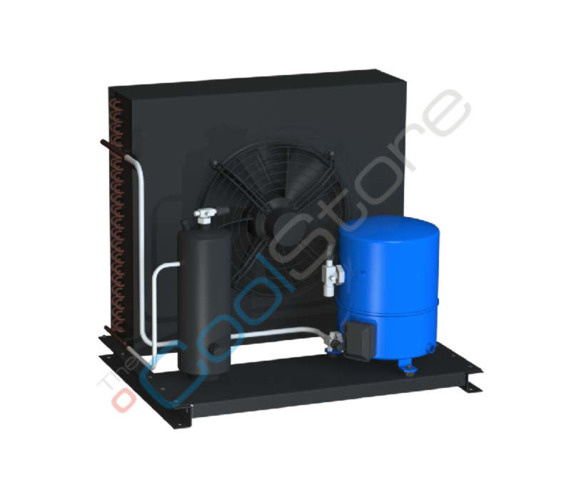

Condensing unit  AA-MKS/MTZ-100

Condensing unit is built on the basis of a reciprocating compressor Maneurop.

The standard unit is equipped with:

  • Compressor MANEUROP
  • Crankcase heater
  • Condenser
  • The liquid reservoir
  • Shut-off valves on the suction and liquid

In addition, the unit has been powder coated and filled with inert gas.

TECHNICAL DATA

Model Cooling capacity Valves tube line Sound level Weight
-25°C -5°C +5°C Suction Liquid
AA-MKN/MTZ-100 7,34 kW 17,86 kW 24,30 kW Cu 28 Cu 12 57,0 db(A) 158 kg



Compressor Fan Liquid
receivers
Voltage Max current Voltage Max current Quantity/Diameter Air flow
380V / 50Hz 22,0 A 230V / 50Hz 2 x 1,2 A 2 pcs./∅450 7500 m3/h 11 dm3



DIMENCIONS

A B C D H
1100 mm 1050 mm 900 mm 850 mm 745 mm

Tech specs:
Pictures:
illustrative
