Compressor BITZER 4PES-15Y

  • Compressor BITZER
  • Compressor BITZER 4PES-15Y
Producer: BITZER
Product code: 4PES-15Y
4 520,25 €
/ pc.
3 675,00 €
net / pc.
Add to wish list
Compressor BITZER 4PES-15Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]


Evaporating temperature R-404a/ R-507

Power consumption
(P) [kW]
+5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4PES-15Y 30 ºC Q 57000 W  47300 W  38950 W  31700 W 25550 W 20300 W 15800 W 12050 W 8930 W 6370 W
P 9,90  9,72  9,35 8,82   8,15 7,39  6,56 5,69  4,83 4,00
40 ºC Q  48200 W 39800 W  32600 W  26400 W  21050 W  16520 W  12710 W  9520 W  6890 W  4760 W
P 11,96  11,40  10,67  9,82  8,87  7,86  6,82  5,78  4,77  3,83
50ºC Q  39450 W 32400 W  26350 W  21150 W  16680 W  12920 W  9760 W  7140 W  5000 W  3280 W
P  13,69 12,78  11,73  10,58  9,38  8,14  6,91  5,71  4,58  3,55



         - Additional cooling or limiting suction gas temperature.



Tech specs:
Displacement at 1450 min-1:
48,5 m3/h
Number of cylinders:
2
Voltage :
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 1 5/8"
,
Linia tłocząca 1 1/8"
Oil charge:
2,6 dm3
Weight:

net

147 kg
Crankcase heater:
Factory flooded with oil:
Yes

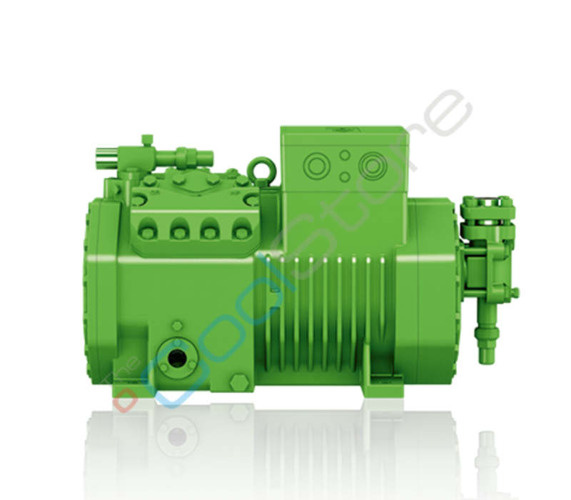

Pictures:
illustrative
