Unarmed condenser LH84 18,4 [kW] galvanized

  • Unarmed condenser LH84 18,4 [kW] galvanized
  • Unarmed condenser LH84 18,4 [kW] galvanized
Product code: SPAL_601
Series:Skraplacze nieuzbrojone LH
Warranty: 12 months
715,86 €
/ pc.
582,00 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

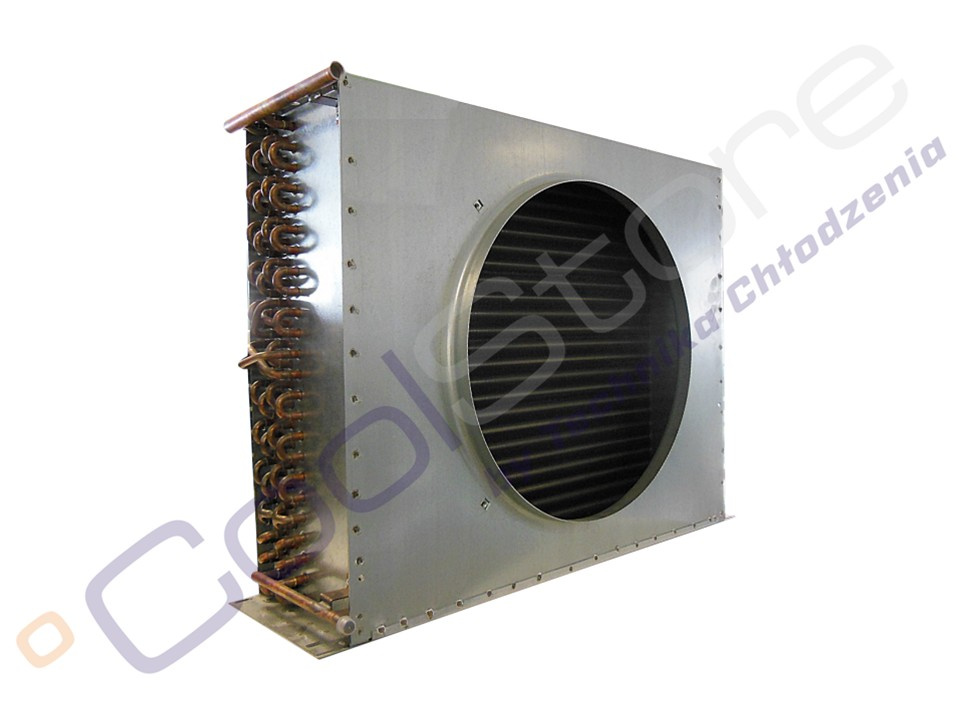

UNARMED CONDENSER LH84 18,4 [KW] GALVANIZED

The unassembled condenser block is a refrigeration system component whose purpose is to remove heat from the refrigerated space by means of a refrigerant and to change its state from gaseous to liquid at constant pressure. During this process, the hot refrigerant releases energy to the surroundings, most commonly through airflow forced by a fan, enabling the proper operation of the entire cooling system.

The unit features dimensions of: width 850/930 mm, depth 240 mm (including connections), and height 750 mm. Thanks to this design, it can be used in more demanding refrigeration installations while maintaining high functionality and ease of integration with the system.  It is made of a copper coil with aluminum fins and a galvanized steel casing.

The exchanger is designed to operate with a single 450 mm diameter fan. When used with the recommended Ziehl Abegg FN045-4EK fan, it achieves a cooling capacity of 18,4 kW for refrigerant R404A at parameters tot = +25°C and tk = +40°C.

The unassembled condenser block is used in various refrigeration installations where individual selection of components, such as the fan or additional accessories, is required. Its versatility makes it suitable for both medium-sized and larger refrigeration systems (refrigerated display counters, refrigerated cabinets, pastry showcases, commercial freezers, refrigeration systems, etc.).

To equip the condenser, we recommend the following product:
ZIEHL-ABEGG FN045-4EK.4I.V7P1 - Exhaust fan 176541 | CoolStore online store

Tech specs:
Type:
unarmed
Performance:
18,4 kW (R404A - tot = +25°C, tk = +40°C)
Width:
850/930 mm
Depth:
240 mm with nozzles
Height:
750 mm
Housing:
steel and galvanized
Fan motors:
1
Diameter fan:
450 mm
Type of fan:
ZIEHL-ABEGG FN045-4EK.4I.V7P1 450mm 230V
Model:
LH84
Pictures:
illustrative
