Unarmed condenser LH124 35,3 [kW] green

  • Unarmed condenser LH124 35,3 [kW] green
  • Unarmed condenser LH124 35,3 [kW] green
Product code: SPAL_760
Series:Skraplacze nieuzbrojone LH
Warranty: 12 months
1 306,26 €
/ pc.
1 062,00 €
net / pc.
Add to wish list

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

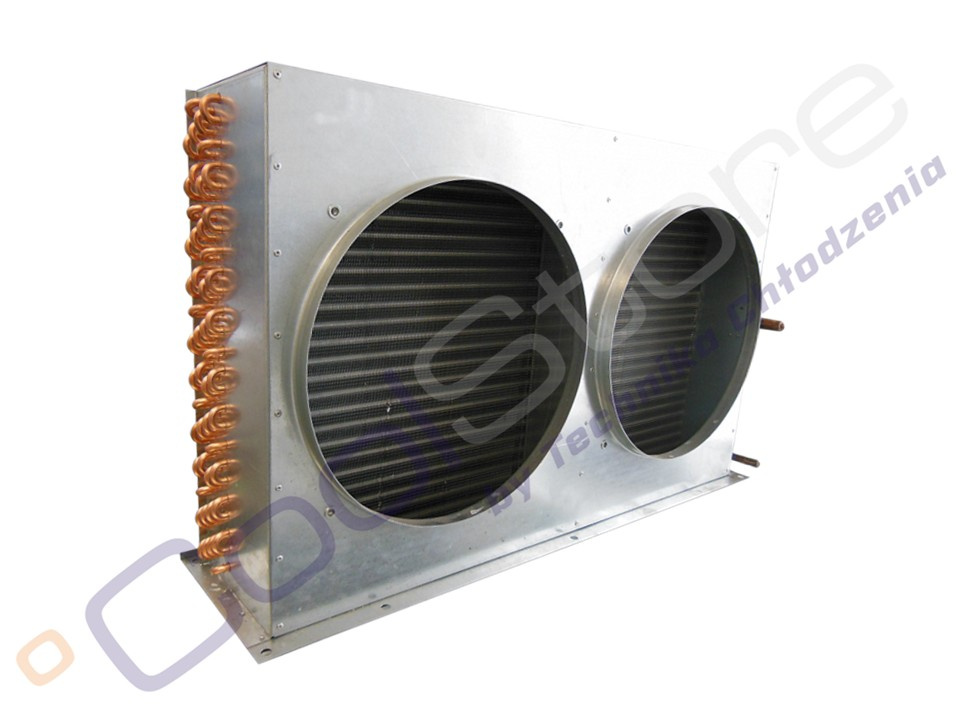

UNARMED CONDENSER LH124 35,3 [KW] GREEN

The unassembled condenser block is a refrigeration system component whose purpose is to remove heat from the refrigerated space by means of a refrigerant and to change its state from gaseous to liquid at constant pressure. During this process, the hot refrigerant releases energy to the surroundings, most commonly through airflow forced by a fan, enabling the proper operation of the entire cooling system.

The unit features dimensions of: width 1550 mm, depth 300 mm (including connections and a base), and height 750 mm. Thanks to this design, it can be used in more demanding refrigeration installations while maintaining high functionality and ease of integration with the system. It is made of a copper coil and aluminum fins, as well as a steel housing painted green.

The exchanger is designed to operate with two fans with a diameter of 450 mm. When used with the recommended Ziehl Abegg FN045-4EK fans, it achieves a cooling capacity of 35,3 kW for refrigerant R404A at parameters tot = +25°C and tk = +40°C.

The unassembled condenser block is used in various refrigeration installations where individual selection of components, such as the fan or additional accessories, is required. Its versatility makes it suitable for both medium-sized and larger refrigeration systems (refrigerated display counters, refrigerated cabinets, pastry showcases, commercial freezers, refrigeration systems, etc.).

To equip the condenser, we recommend the following product:
ZIEHL-ABEGG FN045-4EK.4I.V7P1 - Exhaust fan 176541 | CoolStore online store

Tech specs:
Type:
unarmed
Performance:
35,3 kW (R404A - tot = +25°C, tk = +40°C)
Width:
1550 mm
Depth:
300 mm with nozzles and a base
Height:
700 mm
Housing:
steel and painted green
Fan motors:
2
Diameter fan:
450 mm
Type of fan:
ZIEHL-ABEGG FN045-4EK.4I.V7P1 450mm 230V
Model:
LH124
Pictures:
illustrative
