DORIN semi-hermetic compressors are modern solutions designed with maximum efficiency and reliability in mind. Engineered to meet market demands and compatible with new refrigerants (HFC and HFO), they combine high performance with quiet and stable operation. The performance range of DORIN compressors is from 4.42 to 244.78 m³/h, with nominal power from 0.5 to 90 HP.
DORIN represents Italian precision and quality, certified under EN ISO 9001. All compressors are 100% made in Italy, ensuring the highest manufacturing standards. They stand out for low vibration, inverter compatibility, and a patented oil return system that minimizes losses and enhances reliability.

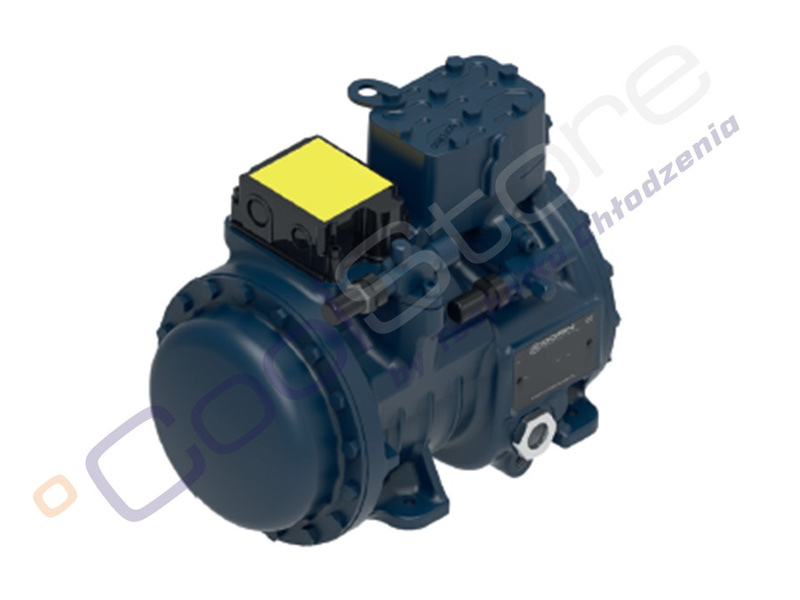

The H380CC model is a compact semi-hermetic compressor with a capacity of 19.53 m³/h, designed for demanding refrigeration systems. It combines high-quality construction with the ability to operate across a wide frequency range from 30 to 70 Hz, allowing flexible adaptation to various operating conditions.
The H380CC compressor is designed to operate at high and high/medium evaporation temperatures, making it an ideal choice for installations requiring stable performance under higher thermal parameters. Its robust construction ensures excellent tightness and high durability, while the optimized internal layout guarantees efficiency across a wide range of operating conditions. Compatibility with HFC and HFO refrigerants enables its use in modern, energy-efficient systems. The H380CC model offers quiet operation, reliability, and a compact design.
The compressor’s cooling capacity table is provided in the datasheet available in the “Downloads” section.
| Type: | Semi-hermetic piston compressor |
| Performance: | 17,53 m3/h |
| Number of cylinders: | 2 [eng] |
| Power supply: | 380-420 V / 3 / 50 Hz; |
| Rotor lock current: | 43,5 A |
| Maximum operating current: | 9,4 A |
| Crankcase heater: | tak |
| Discharge: | 16 mm |
| Ssuction: | 28 mm |
| Factory flooded with oil: | tak POE32 |
| Oil charge: | 1,4 L |
Weight: net | 56 kg |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com |
