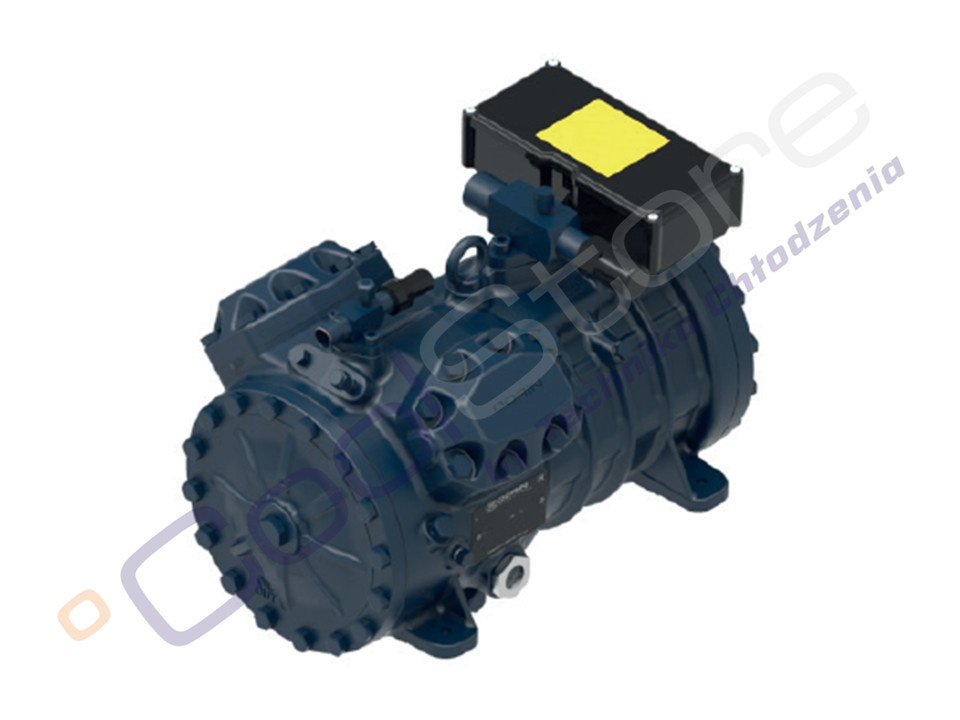

DORIN H505CC - Compressor HDE0550

  • DORIN H505CC - Compressor HDE0550
  • DORIN H505CC - Compressor HDE0550
Producer: DORIN
Product code: SPDO_534
2 960,61 €
/ pc.
2 407,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

DORIN H505CC - COMPRESSOR HDE0550

DORIN semi-hermetic compressors are modern solutions designed for maximum efficiency and reliability. Engineered to meet market demands and to operate with new refrigerants (HFC and HFO), they combine high performance with quiet and stable operation. The capacity range of DORIN compressors is from 4.42 to 244.78 m³/h, with nominal power from 0.5 to 90 HP.

DORIN represents Italian precision and quality confirmed by the EN ISO 9001 certification. All compressors are 100% manufactured in Italy, ensuring the highest production standards. They feature low vibration levels, inverter compatibility, and a patented oil return system that minimizes losses and enhances reliability.

The H505CC model is a compact semi-hermetic compressor with a capacity of 23.13 m³/h, designed for operation in demanding refrigeration systems. It combines high manufacturing quality with the ability to operate across a wide frequency range from 30 to 70 Hz, allowing flexible adjustment to various operating conditions.

Its robust design ensures excellent tightness and high durability, while the optimized internal layout guarantees efficiency across a wide range of operating conditions. Compatibility with HFC and HFO refrigerants allows it to be used in modern, energy-efficient systems. The H505CC model offers quiet operation, reliability, and a compact design.

The compressor cooling capacity table is provided in the product data sheet available in the “Downloads” section.

Tech specs:
Type:
Semi-hermetic piston compressor
Performance:
23.13 m³/h
Number of cylinders:
4
Power supply:
380-420 V / 3 / 50 Hz;
Rotor lock current:
63 A
Maximum operating current:
14,5 A
Crankcase heater:
tak
Discharge:
16 mm
Ssuction:
28 mm
Factory flooded with oil:
yes POE32
Oil charge:
1.8 L
Weight:

net

86 kg
Pictures:
illustrative
Distributor:
Technika Chłodzenia Spółka z o.o. 41-807 Zabrze ul. Pyskowicka 24, tchw@tchw.pl , +48 32 37 37 930
Producer:
Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com
