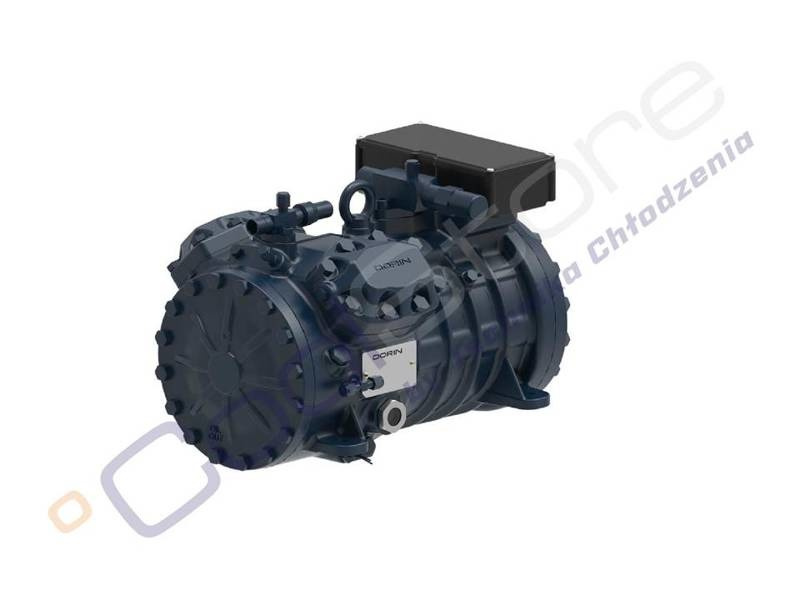

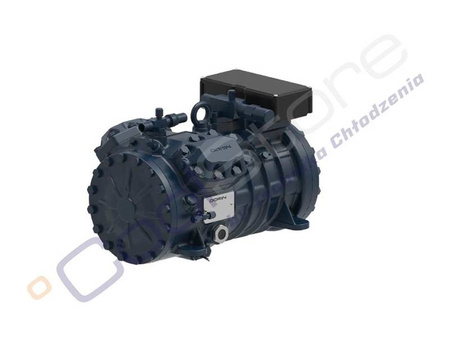

Compressor DORIN H 755 CC

Name: Compressor DORIN H 755 CC
Brand: Dorin
Price: 3059.01 EUR
Availability: OutOfStock

Producer: Dorin

Product code: SPDO_538

Size:

uniwersalny

Our price:

3 059,01 €

/ pc.

2 487,00 €

net / pc.

Quantity:

Add to wish list

COPRESSOR DORIN H 755 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil / quantity

Weight

Max. compressor height

H 755 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the factor.

Tables below

POE 32 /1800 ml

90 kg

336 mm

PERFORMANCE


Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 755 CC	45 ºC	Q [W]	28690	23550	19170	15450	12340	9730	7570	5760	4230	2900
H 755 CC	45 ºC	P[kW]	8,21	7,78	7,23	6,57	5,85	5,1	4,34	3,62	2,96	2,4


Model	Refrigerant evaporation temperature R-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 755 CC	45 ºC	Q [W]	32290	27040	22400	18330	14800	11760	9180	7020	5240
H 755 CC	45 ºC	P[kW]	6,51	6,19	5,81	5,38	4,92	4,44	3,95	3,48	3,04

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 755 CC	45 ºC	Q [W]	29020	24210	19990	16310	13150	10440	8140	6220	4620	3300
H 755 CC	45 ºC	P[kW]	9,09	8,59	8	7,34	6,63	5,89	5,13	4,39	3,67	2,99

Tech specs:

Producer:	Dorin
Series:	H33
Type:	Semi-hermetic piston compressor
Discharge:	18 mm
Ssuction:	28 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
Manufacturer/responsible entity in the EU :	Officine Mario Dorin Via Aretina, 388 50061 Compiobbi (FI), Italy Tel: +39-055-62321.1 Fax: +39-055-62321.380 dorin@dorin.com
