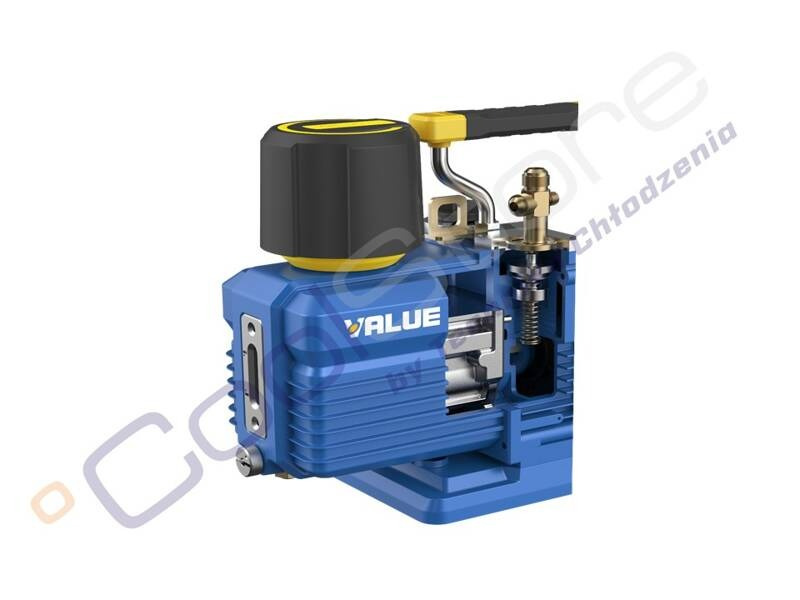

VACUUM PUMP VRP-15D
Dual-stage vacuum pump VRP-15D designed to work with HFC and HFO refrigerants (e.g. R32).
Due to its efficiency, it is a good choice for servicing large refrigeration and air conditioning systems..
It has a built-in valve that maintains vacuum and prevents oil from flowing back into the system..
The oil sight glass is large and mounted in such a way that it can be replaced if the glass is damaged..
The Navtek Vrp-15D is equipped with a very efficient oil mist filter..
Tech specs:
| Flow: | 420 l/min / 15 CFM |
| Vacuum level: | 0,067 Pa / 5 mikronów |
| Engine power: | 0,55 kW (0,75 KM) |
| Compression Stages: | 2 |
| Machine Power Supply: | 230 V |
| Frequency: | 50 - 60 Hz |
| Power Cord Length: | 200 cm |
| Motor Speed at 50 Hz: | 2700 obr/min |
| Noise: | 63 dB |
| Inlet ports: | 1/4”, 3/8”, 1/2”SAE |
| Oil Capacity : | 0,88 l |
| Oil Type: | mineral, viscosity: 46 mm²/s |
| Dimensions: | 414 x 152 x 310 mm |
Weight: net | 15,0 kg |
| IP Protection: | IP44 |
| Operating Temperature: | -1 - 40°C |
| Storage temperature: | -1 - 40°C |
| Minimum Oil Temperature for Startup: | -1°C |
| Shut-Off Valve: | tak |
| Exhaust Plug Thread: | M33 x 1,5 mm |
| Vacuum Gauge: | Lack |
| Motor Type: | DC |
| Package: | Box |
| Pictures: | illustrative |
