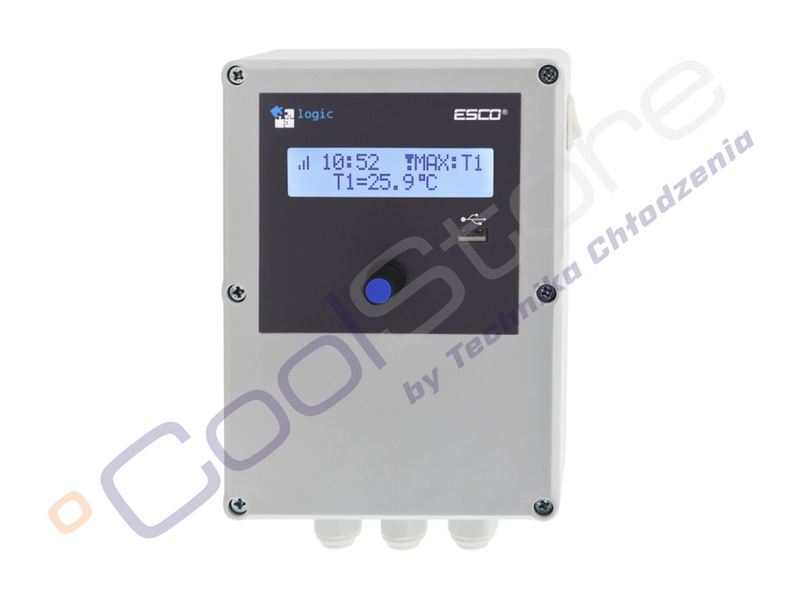

TEMPERATURE RECORDER ESCO DR40-GSM
The DR40-GSM is an advanced temperature recorder designed for convenient and effective monitoring of thermal conditions. Combining functionality with modern technology, this device provides users with constant access to data through SMS notifications.
Equipped with four inputs for measurement probes, the DR40-GSM allows simultaneous monitoring of temperatures in multiple locations. Each sensor can be individually configured with alarm thresholds for both minimum and maximum temperatures. If these thresholds are exceeded, the device responds in several ways: it emits an audible signal, activates external alarm devices via a relay, and sends a detailed SMS notification containing the sensor number, recorded temperature, the time of the alarm, and the device's serial number.
One of the standout features of the DR40-GSM is its ability to provide real-time temperature updates. Simply send an SMS with the word “Info,” and the device will reply with precise data from all connected sensors.
The device supports a wide temperature range, from -50°C to +150°C, making it an ideal solution for various applications, including industrial processes, storage facilities, and laboratories. Additionally, the DR40-GSM offers numerous conveniences, such as a clear display, data recording on a USB drive, and password protection for settings to prevent unauthorized changes.
This reliable and intuitive device is designed for users who value safety and precision in temperature control. The DR40-GSM ensures peace of mind and the confidence that you’ll always stay informed.
Set contents:
• DR40-GSM temperature recorder
• One temperature sensor with a 2-meter cable
• User manual/warranty card
• 1GB Pendrive
| Inlet: | NTC 5kΩ temperature sensor at 25°C |
| Measuring range: | -50...+150°C |
| Accuracy: | ±1°C in the range of -20°C to +80°C |
| Alarm output:: | 10A 250V~, durability of 10⁵ cycles |
| Resolution (DC current): | 0.1°C across the entire range |
| Display: | LCD with 5mm high digits |
| Alarm adjustment method:: | Adjustable hysteresis, upper/lower limit for each sensor |
| Sampling interval:: | Fixed, 1 minute |
| Machine Power Supply: | 230VAC ±15% |
| Memory capacity:: | Depends on the Pendrive, from 1GB to up to 10 years of storage |
| Stopień i klasa ochrony: | IP51 / II |
| Warunki składowania: | -40°C to +85°C; 0% to 85% RH (non-condensing) |
| Warunki pracy: | -20...60°C; 0...100%RH |
| Communication:: | GSM, USB |
| Information function:: | SMS |
| Dimensions: | 114x110x45mm |
| Pictures: | illustrative |
| Manufacturer/responsible entity in the EU : | Termo Plus sp. z o.o. Wilanowska 2, 05-509 Józefosław biuro@esco.eu.com +48 15 687 49 91 |
24 months - Warranty is granted by the seller for a period of 24 months.
Warranty provided by the manufacturer for a period of 24 months.
Warranty for Entrepreneurs - 24 months
Warranty for Consumers - 24 months
