OLVENT YWF4E-300S-P92/35-G 230V exhaust fan

OLVENTYWF4E-300S-P92/35-G 230V exhaust fan

Producer: OLVENT

Product code: WEOA_00004

Series:Wentylatory - Olvent

Size:

Our price:

57,18 €

/ pc.

46,49 €

net / pc.

Quantity:

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

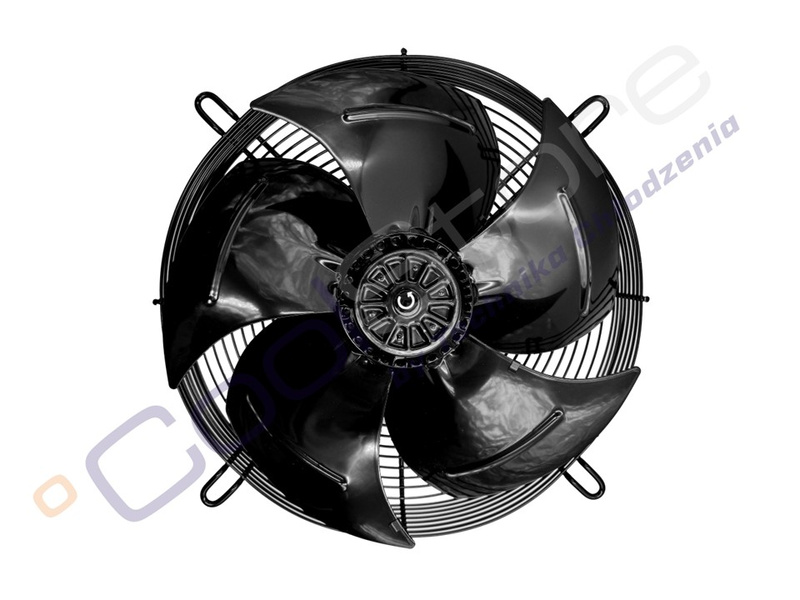

OLVENT EXHAUST FAN YWF4E-300S-P92/35-G 230V

OLVENT fans are available in two variants: suction and discharge.

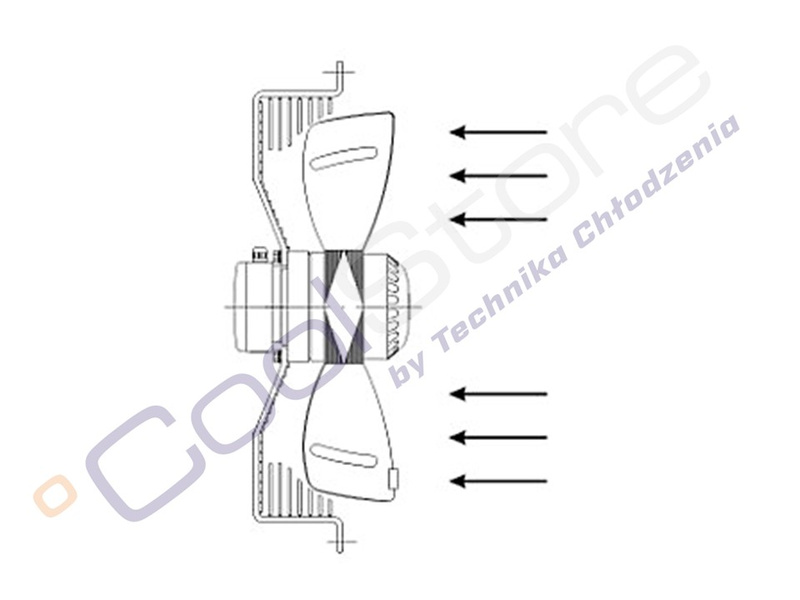

A fan is referred to as a suction fan when air flows from the impeller towards the protective grille. If the flow direction is reversed – from the protective grille to the impeller – the fan is referred to as a discharge fan.

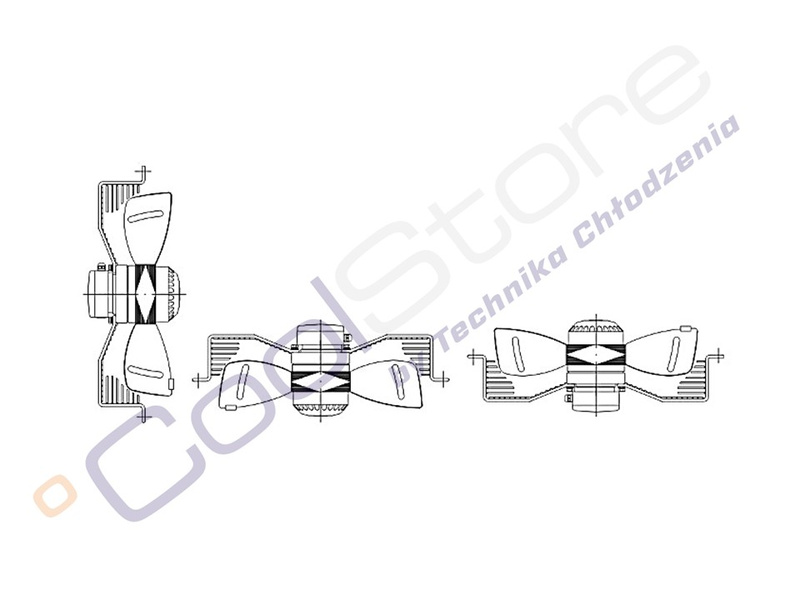

These devices are designed for installation in any plane, at any angle, both vertically and horizontally.
They are equipped with an asynchronous motor, powered by single-phase or three-phase current.
OLVENT fans are equipped with ball bearings as standard, which ensures a longer service life and reliable operation even in demanding conditions.
Single-phase versions are equipped with a starting capacitor as standard.
Each fan has a 1-metre long power cord connected to an electrical box.

Tech specs:

Diameter:	300 mm
Power supply:	230V
Flow:	Suction
Rated speed:	1380 obr/min
Air volume:	1690m3/h
Input:	85W
Operating temperature range:	-30~60C
Sound level:	60dB
Internal thermal protection:	150±5°C
IP Protection:	IP54
Weight: net	6kg
Pictures:	illustrative
Manufacturer/responsible entity in the EU :	Technika Chłodzenia Sp. z o.o. ul. Pyskowicka 24 41-807 Zabrze tel. 32 37 37 930 fax. 32 37-37-931 e-mail: tchw@tchw.pl

Technical data Download
